Creating a Notebook Instance¶
Before developing a model, create a notebook instance, open it, and perform encoding.
Background¶
Only notebook instances in the Running state can be started.
A maximum of 10 notebook instances can be created for an account. By default, the notebook instances created by the current user are displayed. If Display Only My Instances is disabled, all notebook instances created by the current account and its IAM users are displayed.
If OBS storage is used, ensure that the OBS directory you use and ModelArts are in the same region.
Before creating a notebook instance, learn about the AI engines supported by ModelArts and their versions.
Creating a Notebook Instance¶
Log in to the ModelArts console. In the navigation pane, choose DevEnviron > Notebook to switch to the Notebook page.

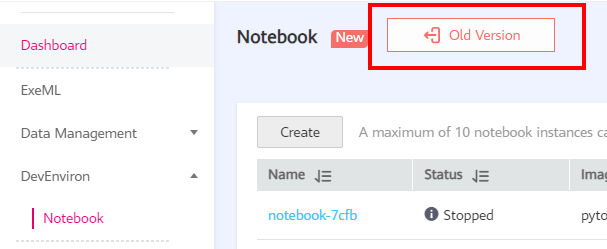

Figure 1 Notebooks¶
Click Create. On the displayed page, set the required parameters.
Enter the basic information about the notebook instance, including the name, description, and whether to automatically stop the notebook instance. For details about the parameters, see Table 1.
Table 1 Parameters of basic information¶ Parameter
Description
Name
Name of a notebook instance, which contains a maximum of 64 characters. Only digits, letters, underscores (_), and hyphens (-) are allowed. This parameter is mandatory.
Description
Brief description of a notebook instance.
Auto Stop
This function is enabled by default. The default value is 1 hour later, indicating that the notebook instance automatically stops after running for 1 hour and its billing stops.
The options are 1 hour later, 2 hours later, 4 hours later, 6 hours later, and Custom. You can select Custom to specify any integer from 1 to 24 hours.
Set notebook parameters, such as the work environment and instance flavor. For details, see Table 2.
Table 2 Notebook instance parameters¶ Parameter
Description
Work Environment
Only public images, which are the AI frameworks built in ModelArts are supported.
All supported AI engines can be used in the same notebook instance. Different engines can be switched quickly and conveniently, and run in independent development environments. After the notebook instance is created, go to the Jupyter page to create the development environment with the desired AI engine. The AI engine varies depending on the work environment. For details, see Supported AI Engines.
Multi-Engine 1.0 (Python3, Recommended) is recommended.
If you need to use TensorFlow 2.X, PyTorch 1.4.0, or an AI framework with the R language, use Multi-Engine 2.0 (Python 3). If you select this work environment, select a paid flavor because the free flavor is unavailable.
Note
ModelArts also supports the Keras engine. You can select Multi-Engine 1.0 (Python3, Recommended) or Multi-Engine 1.0 (Python 2). For details, see
Resource Pool
Select Public resource pool or Dedicated resource pool.
Public resource pools are available immediately after being provisioned. Dedicated resource pools are queue-free. When a large number of users use the public resource pool, they may queue for resources. Purchase a dedicated resource pool to improve development efficiency.
Resource Type
Available resource types are CPU and GPU. The GPU type delivers better performance, but is more costly than the CPU type.
The CPU, GPU, and Ascend types are supported. The GPU type delivers better performance, but is more costly than the CPU type.
The CPU and GPU types are supported.
The Ascend type is supported.
Instance Flavor
A flavor needs to be selected only when you select Public resource pools. The instance flavors vary with the Type setting.
If you select CPU for Type, available options include 2 vCPUs | 8 GiB and 8 vCPUs | 32 GiB.
If you select GPU for Type, 8 vCPUs | 64 GiB 1 x P100 is available.
A flavor needs to be selected only when you select Public resource pools. The instance flavors vary with the Type setting.
If you select CPU for Type, available options include [Free] CPU, 2 vCPUs | 8 GiB, and 8 vCPUs | 32 GiB.
If you select GPU for Type, available options include [Free] GPU and GPU: 1 x v100NV32 CPU: 8 vCPUs | 64 GiB .
If you select GPU for Type, Ascend: 1 x Ascend 910 CPU: 24 vCPUs | 96 GiB is available.
If you select free specifications, read the prompt carefully and select I have read and agree to the above.
If you select a public resource pool, available flavors vary depending on the selected type.
If you select CPU for Type, available options include 2 vCPUs | 8 GiB and 8 vCPUs | 32 GiB.
If you select GPU for Type, the available option is GPU: 1 x v100NV32 CPU: 8 vCPUs | 64 GiB.
If you select Ascend for Type, available options include Ascend: 1 x Ascend 910 CPU: 24 vCPUs | 96 GiB and Ascend: 8 x Ascend 910 CPU: 192 vCPUs | 720 GiB.
If you select Ascend for Type, available options include Ascend: 1 x Ascend 910 CPU: 24 vCPUs | 96 GiB and Ascend: 8 x Ascend 910 CPU: 192 vCPUs | 720 GiB.
Storage
You can select OBS.
Click Select next to the Storage Path text box to set the OBS path for storing notebook instance data. If you want to use existing files or data, upload the files or data to the corresponding OBS path in advance. Storage Path must be set to a specific directory in an OBS bucket rather than the root directory of the OBS bucket.
If you select this storage mode, all read and write operations on files on the notebook instances take effect on the data stored in your selected OBS path. To synchronize data in a file stored in OBS to a notebook instance, select the file and click Sync OBS. For details, see Synchronizing Files with OBS. There is no data loss after you restart this notebook instance.
Click Next.
After confirming the parameter configurations, click Submit.
Switch to the notebook instance list. Status of the notebook instance being created is Starting. If Status of the notebook instance changes to Running, the notebook instance has been created.
