Viewing a VPC Endpoint Service

Scenarios

This section describes how to query details of a VPC endpoint service, including its name, ID, backend resource type, backend resource name, VPC, status, connection approval, service type, and creation time.

Procedure

1. Log in to the management console.

2. Click in the upper left corner and select the required region and project.

3. Click Service List and choose Networking > VPC Endpoint.

4. In the navigation pane on the left, choose VPC Endpoint > VPC Endpoint Services.

   Locate the VPC endpoint service by entering a filter in the search box in the upper right corner:

   • Search by name or ID.

     1. Select Name or ID in the filter box.

     2. Enter a keyword in the search box.

     3. Click to start the search.

        VPC endpoint services containing the keyword are displayed.

   • Search by tag.

     1. Click the filter box and select Tag from the drop-down list.

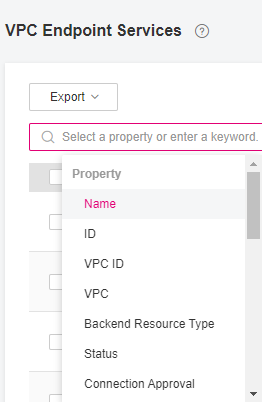

        Figure 1 Searching for VPC endpoint services by tag

     2. Select tags.

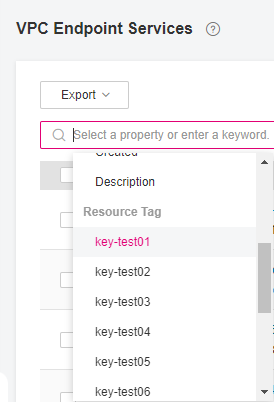

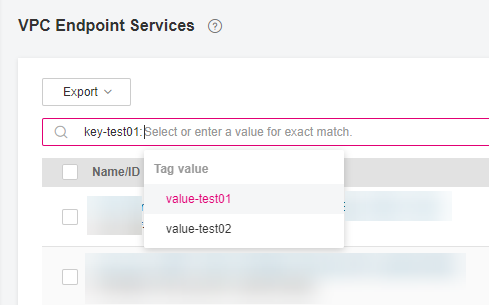

        Figure 2 Selecting tags

     3. Click OK to search.

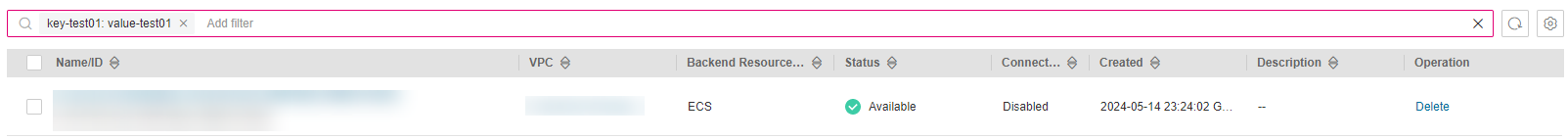

        VPC endpoint services containing the specified tags are displayed.

5. In the VPC endpoint service list, locate the VPC endpoint service and click its name to view its details.



   Figure 3 Summary of the VPC endpoint service

   Table 1 describes the parameters displayed on the VPC endpoint service details page.

   Table 1 Parameters contained in the details of a VPC endpoint service

   Tab	Parameter	Description
   Summary	Name	Specifies the name of the VPC endpoint service.
   Summary	ID	Specifies the ID of the VPC endpoint service.
   Summary	Backend Resource Type	Specifies the type of the backend resource that provides services.
   Summary	Backend Resource Name	Specifies the name of the backend resource that provides services to be accessed.
   Summary	VPC	Specifies the VPC where the VPC endpoint service is to be deployed.
   Summary	Status	Specifies the status of the VPC endpoint service.
   Summary	Connection Approval	Specifies whether connection approval is required.
   Summary	Service Type	Specifies the type of the VPC endpoint service.
   Summary	Created	Specifies the creation time of the VPC endpoint service.
   Connection Management	VPC Endpoint ID	Specifies the ID of the VPC endpoint.
   Connection Management	Packet ID	Specifies the identifier of the VPC endpoint ID.
   Connection Management	Status	Specifies the status of the VPC endpoint. For details about the statuses of a VPC endpoint, see What Statuses Are Available for a VPC Endpoint Service and VPC Endpoint?
   Connection Management	Owner	Specifies the account ID of the VPC endpoint owner.
   Connection Management	Created	Specifies the creation time of the VPC endpoint.
   Connection Management	Operation	Specifies whether to allow a VPC endpoint to connect to a VPC endpoint service. The option can be Accept or Reject.
   Permission Management	Authorized Account ID	Specifies the authorized account ID for connecting to the VPC endpoint. The ID can also be *. If you add an asterisk (*) to the whitelist, it means that all users can access the VPC endpoint service.
   Permission Management	Operation	Specifies whether to delete an authorized account from the whitelist.
   Port Mapping	Protocol	Specifies the protocol used for communications between the VPC endpoint service and a VPC endpoint.
   Port Mapping	Service Port	Specifies the port provided by the backend service bound to the VPC endpoint service.
   Port Mapping	Terminal Port	Specifies the port provided by the VPC endpoint, allowing you to access the VPC endpoint service.
   Tags	Key	Specifies the tag key of the VPC endpoint service.
   Tags	Value	Specifies the tag value of the VPC endpoint service.
   Tags	Operation	Specifies the operation to be performed on the VPC endpoint service tag. You can click Edit or Delete.
