Creating a VPC Peering Connection with a VPC in Another Account

Scenarios

If two VPCs from the same region cannot communicate with each other, you can use a VPC peering connection. This section describes how to create a VPC peering connection between two VPCs in different accounts.

This following describes how to create a VPC peering connection between VPC-A in account A and VPC-B in account B to enable communications between ECS-A01 and RDS-B01.

Procedure:

Step 1: Create a VPC Peering Connection

Step 2: Peer Account Accepts the VPC Peering Connection Request

Step 3: Add Routes for the VPC Peering Connection

Step 4: Verify Network Connectivity

**Figure 1** Networking diagram of a VPC peering connection between VPCs in different accounts

Figure 1 Networking diagram of a VPC peering connection between VPCs in different accounts

Notes and Constraints

  • Only one VPC peering connection can be created between two VPCs at the same time.

  • A VPC peering connection can only connect VPCs in the same region.

  • If the local and peer VPCs have overlapping CIDR blocks, the VPC peering connection may not take effect.

  • For a VPC peering connection between VPCs in different accounts:

    • If account A initiates a request to create a VPC peering connection with a VPC in account B, the VPC peering connection takes effect only after account B accepts the request.

    • To ensure network security, do not accept VPC peering connections from unknown accounts.

Prerequisites

You have two VPCs in the same region, but they are from different accounts. If you want to create one, see Creating a VPC.

Step 1: Create a VPC Peering Connection

  1. Log in to the management console.

  1. Click image1 in the upper left corner and select the desired region and project.

  2. Click image2 in the upper left corner and choose Network > Virtual Private Cloud.

    The Virtual Private Cloud page is displayed.

  3. In the navigation pane on the left, choose Virtual Private Cloud > VPC Peering Connections.

    The VPC peering connection list is displayed.

  4. In the upper right corner of the page, click Create VPC Peering Connection.

    The Create VPC Peering Connection dialog box is displayed.

  5. Configure the parameters as prompted.

    For details, see Table 1.

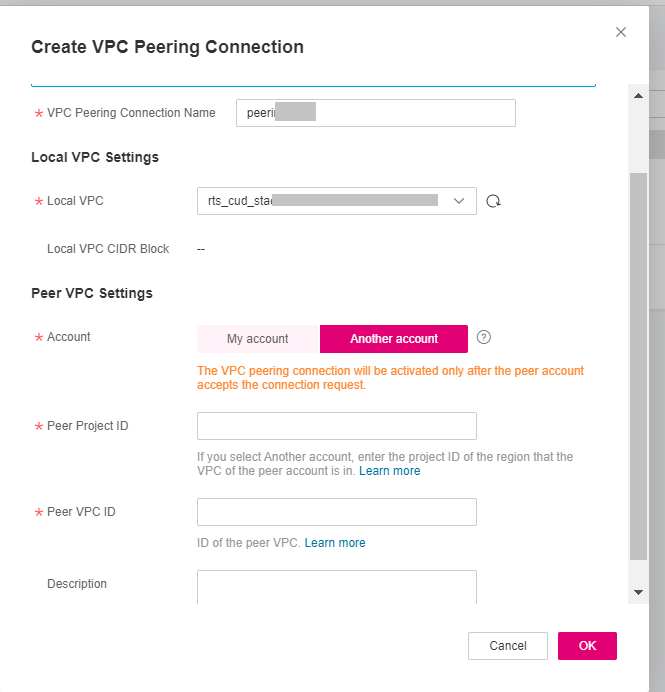

    **Figure 2** Create VPC Peering Connection

    Figure 2 Create VPC Peering Connection

    Table 1 Parameters for creating a VPC peering connection

    Parameter

    Description

    Example Value

    VPC Peering Connection Name

    Mandatory

    Enter a name for the VPC peering connection.

    The name can contain a maximum of 64 characters, including letters, digits, hyphens (-), and underscores (_).

    peering-AB

    Local VPC

    Mandatory

    VPC at one end of the VPC peering connection. You can select one from the drop-down list.

    VPC-A

    Local VPC CIDR Block

    CIDR block of the selected local VPC

    172.16.0.0/16

    Account

    Mandatory

    • Options: My account and Another account

    • Select Another account.

    Another account

    Peer Project ID

    This parameter is mandatory because Account is set to Another account.

    The project ID of the region that the peer VPC resides. For details about how to obtain the project ID, see Obtaining the Peer Project ID of a VPC Peering Connection.

    Project ID of VPC-B in region A:

    067cf8aecf3XXX08322f13b

    Peer VPC ID

    This parameter is mandatory because Account is set to Another account.

    ID of the VPC at the other end of the VPC peering connection. For details about how to obtain the ID, see Obtaining a VPC ID.

    VPC-B ID:

    17cd7278-XXX-530c952dcf35

    Description

    Optional

    Enter the description of the VPC peering connection in the text box as required. The description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).

    peering-AB connects VPC-A and VPC-B.

  6. Click OK.

    • If the message "Invalid VPC ID and project ID." is displayed, check whether the project ID and VPC ID are correct.

      • Peer Project ID: The value must be the project ID of the region where the peer VPC resides.

      • The local and peer VPCs must be in the same region.

    • If the status of the created VPC peering connection is Awaiting acceptance, go to Step 2: Peer Account Accepts the VPC Peering Connection Request.

Step 2: Peer Account Accepts the VPC Peering Connection Request

After you create a VPC peering connection with a VPC in another account, you need to contact the peer account to accept the VPC peering connection request. In this example, account A notifies account B to accept the request. Account B needs to:

  1. Log in to the management console.

  2. Click image3 in the upper left corner and choose Network > Virtual Private Cloud.

    The Virtual Private Cloud page is displayed.

  3. In the navigation pane on the left, choose Virtual Private Cloud > VPC Peering Connections.

    The VPC peering connection list is displayed.

  4. In the upper part of the VPC peering connection list, locate the VPC peering connection request to be accepted.

    **Figure 3** Accept Request

    Figure 3 Accept Request

  5. Locate the row that contains the target VPC peering connection and click Accept Request in the Operation column.

    After the status of the VPC peering connection changes to Accepted, the VPC peering connection is created.

  6. Go to Step 3: Add Routes for the VPC Peering Connection.

Step 3: Add Routes for the VPC Peering Connection

To enable communications between VPCs connected by a VPC peering connection, you need to add forward and return routes to the route tables of the VPCs. For details, see VPC Peering Connection Usage Examples.

Both accounts need to add a route to the route table of their VPC. In this example, account A adds a route to the route table of VPC-A, and account B adds a route to the route table of VPC-B.

  1. Add routes to the route table of the local VPC:

    1. In the VPC peering connection list of the local account, click the name of the target VPC peering connection.

      The page showing the VPC peering connection details is displayed.

    2. In the lower part of the VPC peering connection details page, click Add Route.

      The Add Route dialog box is displayed.

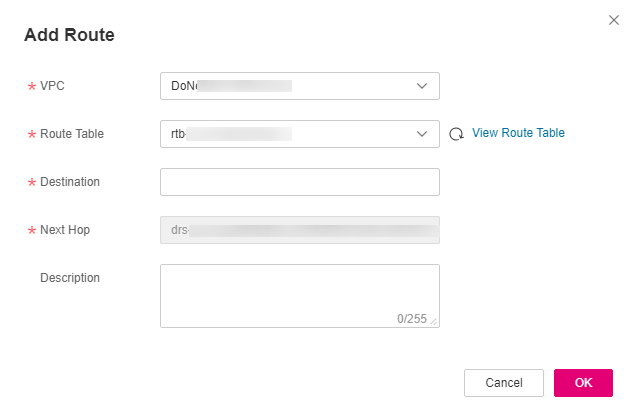

      **Figure 4** Add Route

      Figure 4 Add Route

    3. Add routes to the route tables as prompted.

      Table 2 describes the parameters.

      Table 2 Parameter description

      Parameter

      Description

      Example Value

      VPC

      The default value is the VPC connected by the VPC peering connection in the current account. You do not need to select a VPC.

      VPC-A

      Route Table

      Select the route table of the VPC. The route will be added to this route table.

      Each VPC comes with a default route table to control the outbound traffic from the subnets in the VPC. In addition to the default route table, you can also create a custom route table and associate it with the subnets in the VPC. Then, the custom route table controls outbound traffic of the subnets.

      • If there is only the default route table in the drop-down list, select the default route table.

      • If there are both default and custom route tables in drop-down list, select the route table associated with the subnet connected by the VPC peering connection.

      rtb-VPC-A (Default route table)

      Destination

      An IP address or address range in the other VPC connected by the VPC peering connection. The value can be a VPC CIDR block, subnet CIDR block, or ECS IP address. For details about the route configuration example, see VPC Peering Connection Usage Examples.

      VPC-B CIDR block: 172.17.0.0/16

      Next Hop

      The default value is the current VPC peering connection. You do not need to specify this parameter.

      peering-AB

      Description

      Supplementary information about the route. This parameter is optional.

      The description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).

      Route from VPC-A to VPC-B

    4. Click OK.

      You can view the routes in the route list.

  2. Add routes to the route table of the peer VPC:

    1. In the VPC peering connection list of the peer account, click the name of the target VPC peering connection.

      The page showing the VPC peering connection details is displayed.

    2. In the lower part of the VPC peering connection details page, click Add Route.

      The Add Route dialog box is displayed.

      **Figure 5** Add Route

      Figure 5 Add Route

    3. Add routes to the route table as prompted.

      Table 3 describes the parameters.

      Table 3 Parameter description

      Parameter

      Description

      Example Value

      VPC

      The default value is the VPC connected by the VPC peering connection in the current account. You do not need to select a VPC.

      VPC-B

      Route Table

      Select the route table of the VPC. The route will be added to this route table.

      Each VPC comes with a default route table to control the outbound traffic from the subnets in the VPC. In addition to the default route table, you can also create a custom route table and associate it with the subnets in the VPC. Then, the custom route table controls outbound traffic of the subnets.

      • If there is only the default route table in the drop-down list, select the default route table.

      • If there are both default and custom route tables in drop-down list, select the route table associated with the subnet connected by the VPC peering connection.

      rtb-VPC-B (Default route table)

      Destination

      An IP address or address range in the other VPC connected by the VPC peering connection. The value can be a VPC CIDR block, subnet CIDR block, or ECS IP address. For details about the route configuration example, see VPC Peering Connection Usage Examples.

      VPC-A CIDR block: 172.16.0.0/16

      Next Hop

      The default value is the current VPC peering connection. You do not need to specify this parameter.

      peering-AB

      Description

      Supplementary information about the route. This parameter is optional.

      The description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).

      Route from VPC-B to VPC-A.

    4. Click OK.

      You can view the route in the route list.

Step 4: Verify Network Connectivity

After you add routes for the VPC peering connection, verify the communication between the local and peer VPCs.

  1. Log in to ECS-A01 in the local VPC.

  2. Check whether ECS-A01 can communicate with RDS-B01.

    ping IP address of RDS-B01

    Run the following commands:

    ping 172.17.0.21

    If information similar to the following is displayed, ECS-A01 and RDS-B01 can communicate with each other, and the VPC peering connection between VPC-A and VPC-B is successfully created.

    [root@ecs-A02 ~]# ping 172.17.0.21
    PING 172.17.0.21 (172.17.0.21) 56(84) bytes of data.
    64 bytes from 172.17.0.21: icmp_seq=1 ttl=64 time=0.849 ms
    64 bytes from 172.17.0.21: icmp_seq=2 ttl=64 time=0.455 ms
    64 bytes from 172.17.0.21: icmp_seq=3 ttl=64 time=0.385 ms
    64 bytes from 172.17.0.21: icmp_seq=4 ttl=64 time=0.372 ms
    ...
    --- 172.17.0.21 ping statistics ---
