Adding a Security Group Rule

Scenarios

A security group is a collection of access control rules to control the traffic that is allowed to reach and leave the cloud resources that it is associated with. The cloud resources can be cloud servers, containers, databases, and more. Cloud resources associated with the same security group have the same security requirements and are mutually trusted within a VPC. A security group consists of inbound and outbound rules.

Each ECS must be associated with at least one security group. If you do not have a security group when creating an ECS, the system provides a default security group.

Like whitelists, security group rules work as follows:

  • Inbound rules control incoming traffic to instances in the security group.

    If an inbound request matches the source in an inbound security group rule, the request is allowed and other requests are denied.

    By default, you do not need to configure deny rules in the inbound direction because requests that do not match allow rules will be denied.

  • Outbound rules control outgoing traffic from instances in the security group.

    If the destination of an outbound security group rule is 0.0.0.0/0, all outbound requests are allowed.

    0.0.0.0/0 represents all IPv4 addresses.

    ::/0 represents all IPv6 addresses.

If the rules of the security group associated with your instance cannot meet your requirements, for example, you need to allow inbound traffic on a specific TCP port, you can add an inbound rule to allow traffic on the TCP port.

Security Group Rule Configuration Examples

  • The system provides a default security group. For details about the default security group rules, see Default Security Group and Its Rules. If the default security group rules cannot meet your requirements, you can modify them.

  • Before configuring security group rules, you need to plan access policies for instances in the security group. For details about common security group rule configuration examples, see Security Group Configuration Examples.

Procedure

  1. Log in to the management console.

  2. Click image1 in the upper left corner and select the desired region and project.

  3. Click image2 in the upper left corner and choose Network > Virtual Private Cloud.

    The Virtual Private Cloud page is displayed.

  4. In the navigation pane on the left, choose Access Control > Security Groups.

    The security group list is displayed.

  5. Locate the row that contains the target security group, and click Manage Rule in the Operation column.

    The page for configuring security group rules is displayed.

  6. On the Inbound Rules tab, click Add Rule.

    The Add Inbound Rule dialog box is displayed.

  7. Configure required parameters.

    You can click + to add more inbound rules.

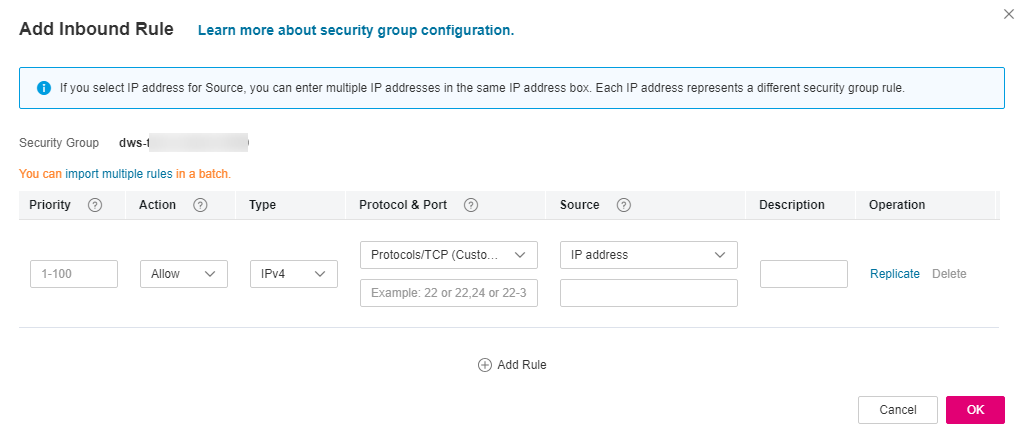

    **Figure 1** Add Inbound Rule

    Figure 1 Add Inbound Rule

    Table 1 Inbound rule parameter description

    Parameter

    Description

    Example Value

    Protocol & Port

    The network protocol used to match traffic in a security group rule.

    Currently, the value can be All, TCP, UDP, GRE, ICMP, or more.

    TCP

    Port: The port or port range over which traffic can reach your ECS. The value can be from 1 to 65535.

    22, or 22-30

    Type

    Source IP address version. You can select:

    • IPv4

    • IPv6

    IPv4

    Source

    Source of the security group rule. The value can be an IP address or a security group to allow access from IP addresses or instances in the security group.

    • IP address:

      • Single IP address: 192.168.10.10/32

      • All IP addresses: 0.0.0.0/0

      • IP address range: 192.168.1.0/24

    • Security group: The source is from another security group. You can select a security group in the same region from the drop-down list. If there is instance A in security group A and instance B in security group B, and the inbound rule of security group A allows traffic from security group B, traffic is allowed from instance B to instance A.

    If the source is a security group, this rule will apply to all instances associated with the selected security group.

    0.0.0.0/0

    Description

    Supplementary information about the security group rule. This parameter is optional.

    The security group rule description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).

    N/A

  8. Click OK.

    The inbound rule list is displayed.

  9. On the Outbound Rules tab, click Add Rule.

    The Add Outbound Rule dialog box is displayed.

  10. Configure required parameters.

    You can click + to add more outbound rules.

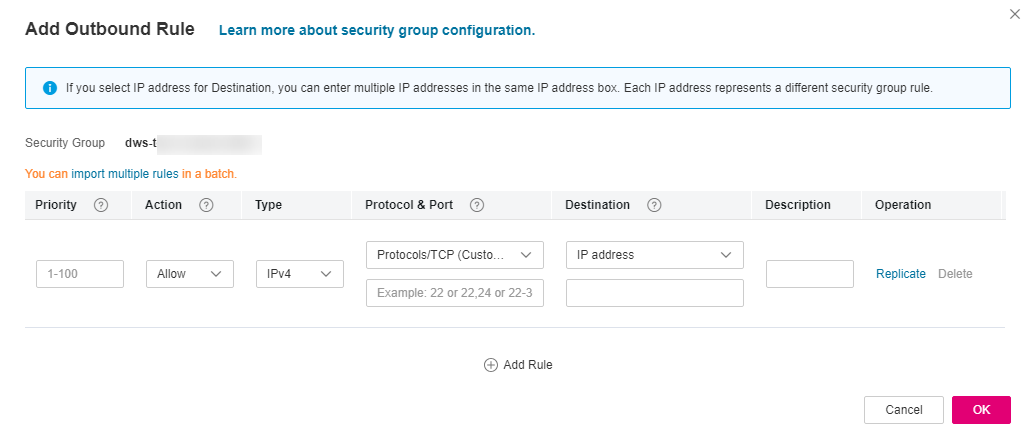

    **Figure 2** Add Outbound Rule

    Figure 2 Add Outbound Rule

    Table 2 Outbound rule parameter description

    Parameter

    Description

    Example Value

    Protocol & Port

    The network protocol used to match traffic in a security group rule.

    Currently, the value can be All, TCP, UDP, GRE, ICMP, or more.

    TCP

    Port: The port or port range over which traffic can leave your ECS. The value can be from 1 to 65535.

    22, or 22-30

    Type

    Source IP address version. You can select:

    • IPv4

    • IPv6

    IPv4

    Destination

    Destination of the security group rule. The value can be an IP address or a security group to allow access to IP addresses or instances in the security group.

    • IP address:

      • Single IP address: 192.168.10.10/32

      • All IP addresses: 0.0.0.0/0

      • IP address range: 192.168.1.0/24

    • Security group: The source is from another security group. You can select a security group in the same region from the drop-down list. If there is instance A in security group A and instance B in security group B, and the inbound rule of security group A allows traffic from security group B, traffic is allowed from instance B to instance A.

    0.0.0.0/0

    Description

    Supplementary information about the security group rule. This parameter is optional.

    The security group rule description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).

    N/A

  11. Click OK.

    The outbound rule list is displayed.
