Adding a Subscription to a Topic¶
Scenarios¶
To deliver messages published to a topic to endpoints, you must add the subscription endpoints to the topic.
Adding a Subscription¶
Log in to the management console.
In the upper left corner of the page, click
and select the desired region and project.
Select Simple Message Notification under Application.
The SMN console is displayed.
In the navigation pane, choose Topics.
The Topics page is displayed.
Locate the topic that you want to add a subscription to. In the Operation column, click Add Subscription.
Alternatively, click a topic name. In the upper right corner of the displayed page, click Add Subscription.
The Add Subscription dialog box is displayed.

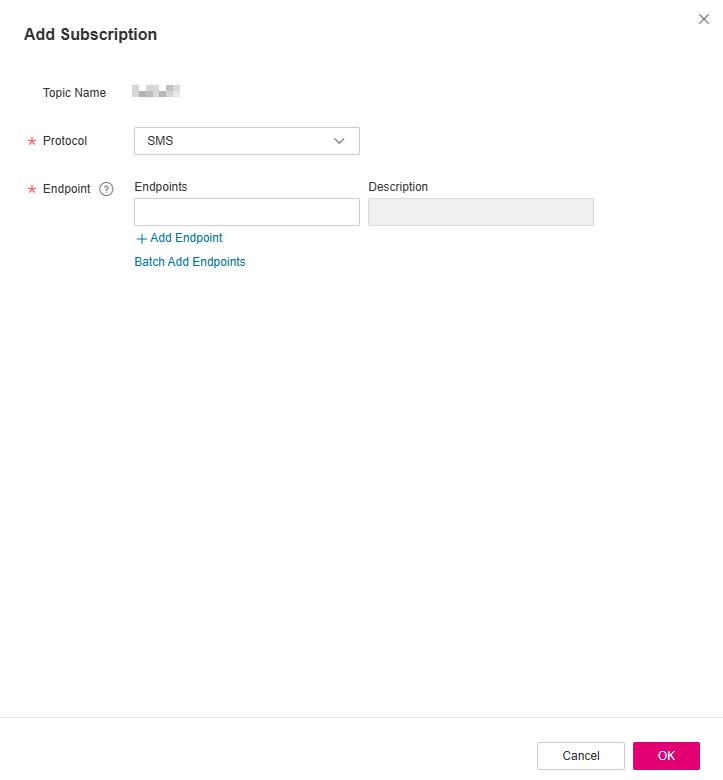

Figure 1 Add Subscription¶
Specify the subscription protocol and endpoints.
Table 1 Parameters for adding a subscription¶ Parameter
Description
Topic Name
Specifies the name of the topic to which messages are published.
Protocol
Specifies the protocol over which messages are sent. Possible values are SMS, HTTP, HTTPS, FunctionGraph (function), and Email.
Endpoint
Specifies the subscription endpoint. You can add up to 10 SMS, email, HTTP, or HTTPS endpoints, one in each line.
SMS: Enter one or more valid phone numbers.
A phone number must be preceded by a plus sign (+) and a country code.
Examples:
+4900000000
+4900000001
+4900000002
+4900000003
Email: Enter one or more valid email addresses.
Examples:
username@example.com
username2@example.com
HTTP: Enter one or more public network URLs.
Example:
http://example.com/notification/action
HTTPS: Enter one or more public network URLs.
Example:
https://example.com/notification/action
FunctionGraph (function): Click
to select a function and specify its version.
Version
This parameter is only available if FunctionGraph (function) is selected for Protocol. Select the version for the function.
Description
Specifies the remarks of the subscription.
Click OK.
The subscription you added is displayed in the subscription list.
Note
To prevent malicious users from attacking subscription endpoints, SMN limits the number of confirmation messages that can be sent to an endpoint within a specified period. For details, see Traffic Control over Subscription Confirmation.
SMN does not check whether subscription endpoints exist when you add subscriptions.
After you add a subscription or request subscription confirmation, SMN will send a confirmation message to the endpoints, and the link in the confirmation message will be valid for 48 hours.
Subscription confirmation messages will be counted as messages sent and will be billed.
