Managing Fragments¶
Context¶
Data is uploaded to OBS using multipart upload. In the event of some situations, data uploads usually fail and generate fragments. You need to clear these fragments to free up storage space. The situations include but are not limited to the following:
The network is in poor condition, and connection to the OBS server is frequently interrupted.
The upload task is manually suspended.
The device is faulty.
The device is powered off suddenly.
With fragment management, you can clear fragments that are generated due to data upload failures.
Important
Deleted fragments cannot be recovered. Before deleting fragments, ensure that all multipart uploads are complete, or deleting fragments may cause uploads to fail.
Procedure¶
Log in to OBS Browser+.
Select the bucket you want and click Fragments.
In the Fragments window, select the unwanted fragments and click Delete above the list. You can also click Delete All above the list to delete all fragments. Click

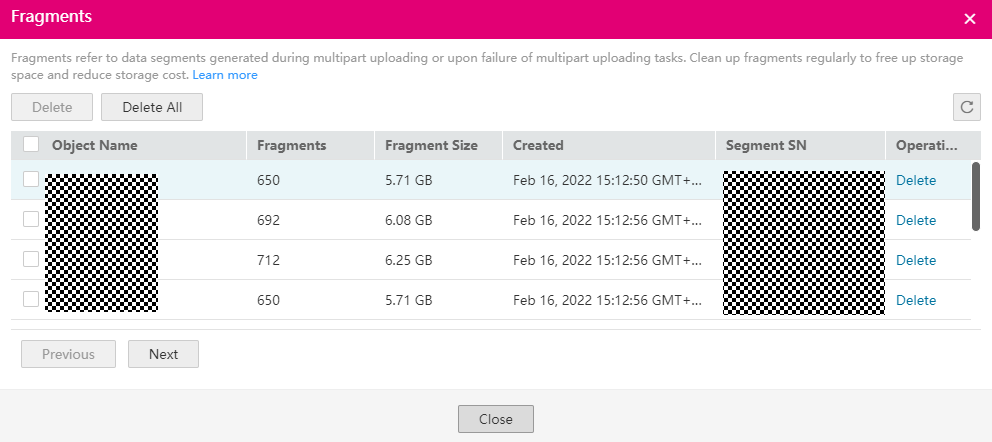

in the upper right corner to refresh the fragment list, as shown in Figure 1.Figure 1 Fragment management
In the displayed Warning dialog box, confirm the delete information and click OK.
Click OK.
The Fragments window is displayed. You can close this window to go back to the OBS Browser+ homepage.
