Deploying a Model as a Service¶
Deploying a Model¶
You can deploy a model as a real-time service that provides a real-time test UI and monitoring capabilities. After model training is complete, you can deploy a version with the ideal accuracy and in the Successful status as a service. The procedure is as follows:
On the Train Model tab page, wait until the training status changes to Successful. Click Deploy in the Version Manager pane to deploy the model as a real-time service.
In the Deploy dialog box, select resource flavor, set the Auto Stop function, and click OK to start the deployment.
Specifications: The GPU specifications are better, and the CPU specifications are more cost-effective.
Compute Nodes: The default value is 1 and cannot be changed.
Auto Stop: After this function is enabled and the auto stop time is set, a service automatically stops at the specified time.
The options are 1 hour later, 2 hours later, 4 hours later, 6 hours later, and Custom. If you select Custom, you can enter any integer from 1 to 24 hours in the text box on the right.
Figure 1 Deploying a model¶
After the model deployment is started, view the deployment status on the Service Deployment page.
It takes a certain period of time to deploy a model. When the status in the Version Manager pane changes from Deploying to Running, the deployment is complete.
Note
On the ExeML page, trained models can only be deployed as real-time services. For details about how to deploy them as batch services, see Where Are Models Generated by ExeML Stored? What Other Operations Are Supported?
Testing a Service¶
On the Service Deployment page, select a service type. For example, on the ExeML page, the object detection model is deployed as a real-time service by default. On the Real-Time Services page, click Prediction in the Operation column of the target service to perform a service test. For details, see Testing a Service.
You can also use code to test a service. For details, see Accessing a Real-Time Service.
The following describes the procedure for performing a service test after the object detection model is deployed as a service on the ExeML page.
After the model is deployed, test the service using an image. On the ExeML page, click the target project, go to the Deploy Service tab page, select the service version in the Running status, click Upload in the service test area, and upload a local image to perform the test.
Click Predict to perform the test. After the prediction is complete, the result is displayed in the Test Result pane on the right. If the model accuracy does not meet your expectation, add images on the Label Data tab page, label the images, and train and deploy the model again. Table 1 describes the parameters in the prediction result. If you are satisfied with the model prediction result, call the API to access the real-time service as prompted. For details, see Accessing a Real-Time Service.
Currently, only JPG, JPEG, BMP, and PNG images are supported.
Table 1 Parameters in the prediction result¶ Parameter
Description
detection_classes
Label of each detection box
detection_boxes
Coordinates of four points (y_min, x_min, y_max, and x_max) of each detection box, as shown in Figure 2
detection_scores
Confidence of each detection box

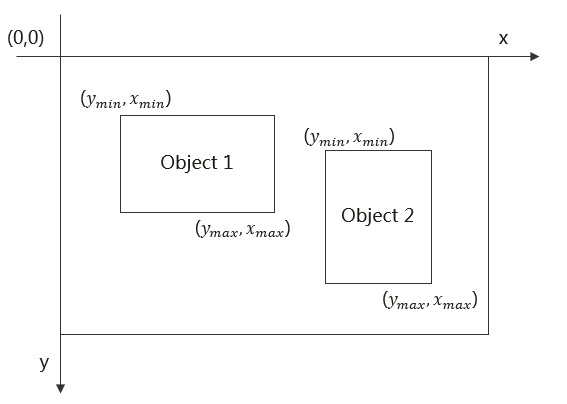

Figure 2 Illustration for coordinates of four points of a detection box¶
Note
A running real-time service keeps consuming resources. If you do not need to use the real-time service, click Stop in the Version Manager pane to stop the service. If you want to use the service again, click Start.
If you enable the auto stop function, the service automatically stops after the specified time and no fee is generated.
