Changing the EVS Disk Type

Scenarios

If the performance of an existing disk no longer meets your service requirements, you can change the disk type to improve the disk performance.

Notes and Constraints

Table 1 Constraints on the disk type change

Phase

Description

Before the change

  • You can only change the disk type when the disk status is Available or In-use.

  • The disk type cannot be changed when any snapshot of the disk is being deleted.

  • Changing the disk type may affect the disk performance, so change the type during off-peak hours.

During the change

  • Some operations cannot be performed on the disk. Such operations include creating snapshots, creating backups, expanding the disk capacity, rolling back data from a snapshot, restoring data from a backup, attaching or detaching the disk, deleting the disk, transferring the disk, and creating an image from the ECS.

  • Changing the disk type may take several hours or even longer, and cannot be stopped. The time depends on the throughput, storage space, and original disk type at the time of the change.

  • In rare cases, the change may fail due to resource problems. In this case, you are advised to perform the change again.

  • You can have a maximum of 10 disks with their types being changed at the same time.

  • The OS cannot be changed if you are changing the disk type of a system disk.

After the change

In rare cases, the disk type may fail to be changed due to a backend issue. If this happens, try again later.

The following table shows the supported changes between disk types.

Table 2 Supported changes between disk types

Source Disk Type

New Disk Type

General Purpose SSD V2

General Purpose SSD V2 (IOPS or throughput, or both changed), Ultra-high I/O, General Purpose SSD, or Extreme SSD

Extreme SSD

General Purpose SSD V2 (IOPS or throughput, or both changed), Ultra-high I/O, or General Purpose SSD

Ultra-high I/O

General Purpose SSD V2 (IOPS or throughput, or both changed), Extreme SSD, or General Purpose SSD

General Purpose SSD

General Purpose SSD V2 (IOPS or throughput, or both changed), Extreme SSD, or Ultra-high I/O

High I/O

General Purpose SSD V2 (IOPS or throughput, or both changed), Extreme SSD, Ultra-high I/O, or General Purpose SSD

Common I/O

General Purpose SSD V2 (IOPS or throughput, or both changed), Extreme SSD, Ultra-high I/O, General Purpose SSD, or High I/O

Impact on the System

Read and write operations on the disk are not affected.

Procedure

  1. Log in to the console.

  2. Click image1 in the upper left corner and choose Storage > Elastic Volume Service.

    The Elastic Volume Service page is displayed.

  3. In the disk list, locate the target disk, click More in the Operation column, and choose Modify Specifications.

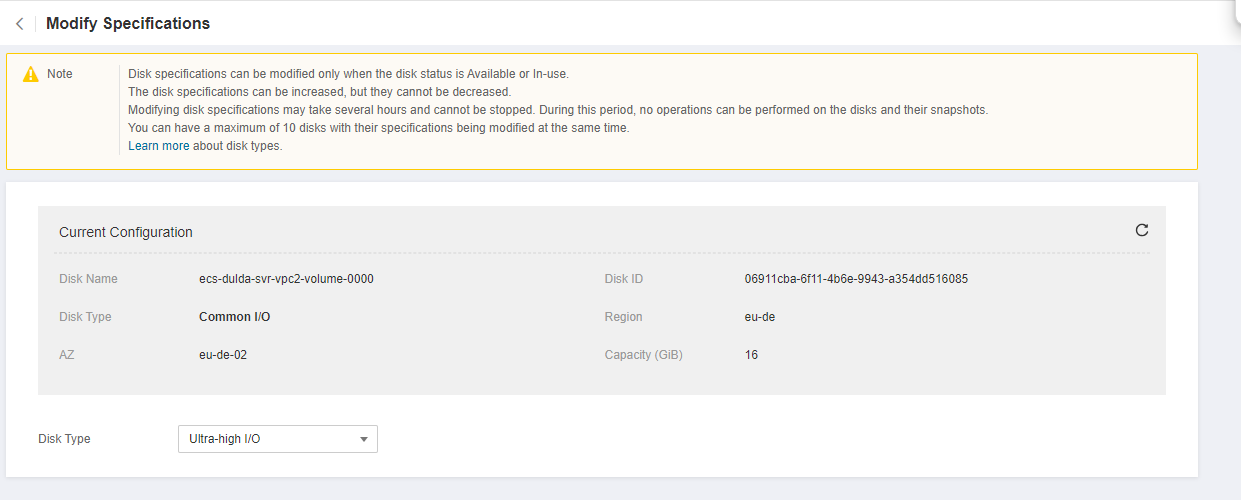

    The Modify Specifications page is displayed.

  4. Select a disk type from the drop-down list.

    The system shows you the new price based on your selection.

  5. Click Submit.

    The disk list is displayed, and the disk status is Changing disk type, indicating that the disk type is being changed. After the disk type changes to the target type, the operation is successful.
