Step 3: Connecting to a Cluster


This section describes how to use a database client to connect to the database in a GaussDB(DWS) cluster. In the following example, the Data Studio client tool is used for connection through the public network address. You can also use other SQL clients to connect to the cluster. For more connection methods, see Methods of Connecting to a Cluster.

  1. Obtain the name, username, and password of the database to be connected.

    If you use the client to connect to the cluster for the first time, use the administrator username and password set in Step 2: Creating a Cluster to connect to the default database gaussdb.

  2. Obtaining the Public Network Address of the Cluster: Connect to the cluster database using the public network address.

  3. Connecting to the Cluster Database Using Data Studio: Download and configure the Data Studio client and connect to the cluster database.

Obtaining the Public Network Address of the Cluster

  1. Log in to the GaussDB(DWS) management console.

  2. In the navigation pane on the left, choose Clusters > Dedicated Clusters.

  3. In the cluster list, select a created cluster (for example, dws-demo) and click image1 next to the cluster name to obtain the public network address.

    The public network address will be used in Connecting to the Cluster Database Using Data Studio.

    **Figure 1** Cluster management

    Figure 1 Cluster management

Connecting to the Cluster Database Using Data Studio

  1. GaussDB(DWS) provides a Windows-based Data Studio GUI client. The tool depends on JDK, so you must install Java 1.8.0_141 or later on the client host.

    In the Windows operating system, you can download the required JDK version from the official website of JDK, and install it by following the installation guide.

  2. Log in to the GaussDB(DWS) management console.

  3. Click Client Connections.

  4. On the Download Client and Driver page, download Data Studio GUI Client.

    • Select Windows x86 or Windows x64 based on the operating system type and click Download to download the Data Studio tool matching the current cluster version.

      If clusters of different versions are available, you will download the Data Studio tool matching the earliest cluster version after clicking Download. If there is no cluster, you will download the Data Studio tool of the earliest version after clicking Download. GaussDB(DWS) clusters are compatible with earlier versions of Data Studio tools.

    • Click Historical Version to download the corresponding Data Studio version. You are advised to download the Data Studio based on the cluster version.

    **Figure 2** Downloading clients

    Figure 2 Downloading clients

  5. Decompress the downloaded client software package (32-bit or 64-bit) to the installation directory.

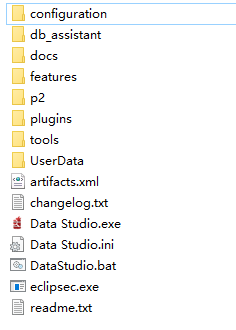

  6. Open the installation directory and double-click Data Studio.exe to start the Data Studio client. See Figure 3.

    **Figure 3** Starting the client

    Figure 3 Starting the client

  7. Choose File > New Connection from the main menu. See Figure 4.

    **Figure 4** Creating a connection

    Figure 4 Creating a connection

  8. In the displayed New Database Connection window, enter the connection parameters.

    Table 1 Connection parameters




    Database Type

    Select GaussDB A.

    GaussDB A

    Connection Name

    Name of a connection



    IP address (IPv4) or domain name of the cluster to be connected


    Host Port

    Database port


    Database Name

    Database name


    User Name

    Username for connecting to the database



    Password for logging in to the database to be connected


    Save Password

    Select an option from the drop-down list:

    • **Current Session Only**: The password is saved only in the current session.

    • **Do Not Save**: The password is not saved.


    Enable SSL

    If Enable SSL is selected, the client can use SSL to encrypt connections. The SSL mode is more secure than common modes, so you are advised to enable SSL connection.


    If Enable SSL is selected, download and decompress the SSL certificate. For details, see Downloading the SSL Cert.... Click the SSL tab and configure the following parameters:

    Table 2 Configuring SSL parameters



    Client SSL Certificate

    Select the sslcert\client.crt file in the decompressed SSL certificate directory.

    Client SSL Key

    Only the PK8 format is supported. Select the sslcert\client.key.pk8 file in the directory where the SSL certificate is decompressed.

    Root Certificate

    When SSL Mode is set to verify-ca, the root certificate must be configured. Select the sslcert\cacert.pem file in the decompressed SSL certificate directory.

    SSL Password

    Set the password for the client SSL key in PK8 format.

    SSL Mode

    Supported SSL modes include:

    • require

    • verify-ca

    GaussDB(DWS) does not support the verify-full mode.

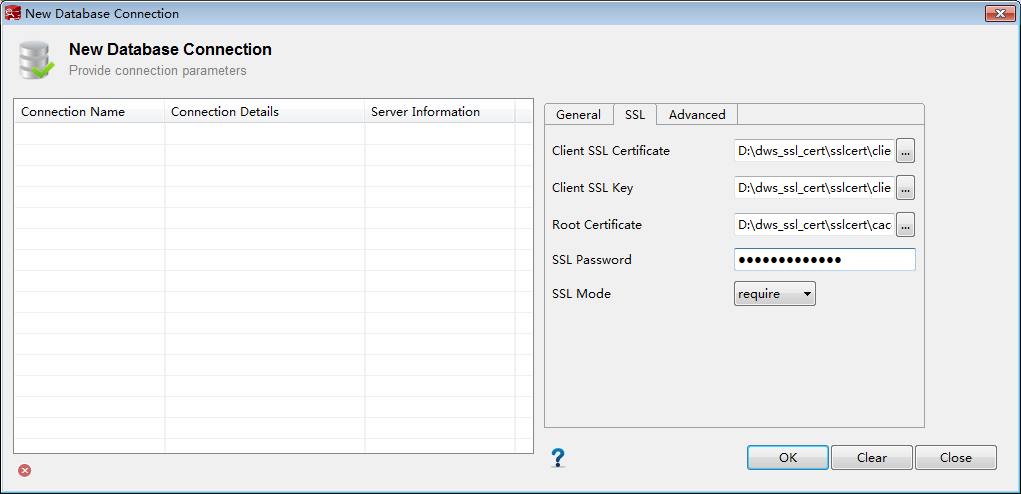

    **Figure 5** Configuring SSL parameters

    Figure 5 Configuring SSL parameters

  9. Click OK to establish the database connection.

    If SSL is enabled, click Continue in the displayed Connection Security Alert dialog box.

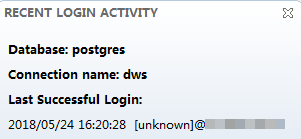

    After the login is successful, the RECENT LOGIN ACTIVITY dialog box is displayed, indicating that Data Studio is connected to the database. You can run the SQL statement in the SQL Terminal window on the Data Studio page.

    **Figure 6** Successful login

    Figure 6 Successful login

    For details about how to use other functions of Data Studio, press F1 to view the Data Studio user manual.
