Accessing Hive Metastore Across Clusters¶
To access MRS Hive data from storage-compute decoupled data warehouse, including when Hive is connected to HDFS or OBS, create an external schema. This function is supported only by 9.1.0 and later versions.
Preparing the Environment¶
Create a storage-compute decoupled and an MRS analysis cluster. Ensure that the MRS and GaussDB(DWS) clusters are in the same region, AZ, and VPC subnet and that the clusters can communicate with each other.
Constraints and Limitations¶
Currently, only the SELECT, INSERT, and INSERT OVERWRITE operations can be performed on tables in the Hive database through external schemas.
MRS supports two types of data sources. For details, see Table 1.
Table 1 Operations supported by MRS data sources¶ Data Source
Table Type
Operation
TEXT
CSV
PARQUET
ORC
HDFS
Non-partitioned table
SELECT
Y
Y
Y
Y
INSERT/INSERT OVERWRITE
x
x
Y
Y
Partitioned table
SELECT
Y
Y
Y
Y
INSERT/INSERT OVERWRITE
x
x
Y
Y
OBS
Non-partitioned table
SELECT
Y
Y
Y
Y
INSERT/INSERT OVERWRITE
x
x
Y
Y
Partitioned table
SELECT
x
x
Y
Y
INSERT/INSERT OVERWRITE
x
x
Y
Y
Transaction atomicity is no longer ensured. If a transaction fails, data consistency cannot be ensured. Rollback is not supported.
GRANT and REVOKE operations cannot be performed on tables created on Hive using external schemas.
Concurrency support: Concurrent read and write operations on GaussDB(DWS), Hive, and Spark may cause dirty reads. Concurrent operations including INSERT OVERWRITE on the same non-partitioned table or the same partition of the same partitioned table may not ensure the expected result. Therefore, do not perform such operations.
The Hive Metastore features do not support the federation mechanism.
Procedure¶
Create a table in Hive.
Insert data on Hive, or upload a local TXT data file to an OBS bucket then import the file to Hive through the OBS bucket, and import the file from the TXT storage table to the ORC storage table.
Create an MRS data source connection.
Create a foreign server.
Create an external schema.
Use the external schema to import data to or read data from Hive tables.
Preparing the ORC Table Data Source of MRS¶
Create a product_info.txt file on the local PC, copy the following data to the file, and save the file to the local PC.
100,XHDK-A-1293-#fJ3,2017-09-01,A,2017 Autumn New Shirt Women,red,M,328,2017-09-04,715,good 205,KDKE-B-9947-#kL5,2017-09-01,A,2017 Autumn New Knitwear Women,pink,L,584,2017-09-05,406,very good! 300,JODL-X-1937-#pV7,2017-09-01,A,2017 autumn new T-shirt men,red,XL,1245,2017-09-03,502,Bad. 310,QQPX-R-3956-#aD8,2017-09-02,B,2017 autumn new jacket women,red,L,411,2017-09-05,436,It's really super nice 150,ABEF-C-1820-#mC6,2017-09-03,B,2017 Autumn New Jeans Women,blue,M,1223,2017-09-06,1200,The seller's packaging is exquisite 200,BCQP-E-2365-#qE4,2017-09-04,B,2017 autumn new casual pants men,black,L,997,2017-09-10,301,The clothes are of good quality. 250,EABE-D-1476-#oB1,2017-09-10,A,2017 autumn new dress women,black,S,841,2017-09-15,299,Follow the store for a long time. 108,CDXK-F-1527-#pL2,2017-09-11,A,2017 autumn new dress women,red,M,85,2017-09-14,22,It's really amazing to buy 450,MMCE-H-4728-#nP9,2017-09-11,A,2017 autumn new jacket women,white,M,114,2017-09-14,22,Open the package and the clothes have no odor 260,OCDA-G-2817-#bD3,2017-09-12,B,2017 autumn new woolen coat women,red,L,2004,2017-09-15,826,Very favorite clothes 980,ZKDS-J-5490-#cW4,2017-09-13,B,2017 Autumn New Women's Cotton Clothing,red,M,112,2017-09-16,219,The clothes are small 98,FKQB-I-2564-#dA5,2017-09-15,B,2017 autumn new shoes men,green,M,4345,2017-09-18,5473,The clothes are thick and it's better this winter. 150,DMQY-K-6579-#eS6,2017-09-21,A,2017 autumn new underwear men,yellow,37,2840,2017-09-25,5831,This price is very cost effective 200,GKLW-l-2897-#wQ7,2017-09-22,A,2017 Autumn New Jeans Men,blue,39,5879,2017-09-25,7200,The clothes are very comfortable to wear 300,HWEC-L-2531-#xP8,2017-09-23,A,2017 autumn new shoes women,brown,M,403,2017-09-26,607,good 100,IQPD-M-3214-#yQ1,2017-09-24,B,2017 Autumn New Wide Leg Pants Women,black,M,3045,2017-09-27,5021,very good. 350,LPEC-N-4572-#zX2,2017-09-25,B,2017 Autumn New Underwear Women,red,M,239,2017-09-28,407,The seller's service is very good 110,NQAB-O-3768-#sM3,2017-09-26,B,2017 autumn new underwear women,red,S,6089,2017-09-29,7021,The color is very good 210,HWNB-P-7879-#tN4,2017-09-27,B,2017 autumn new underwear women,red,L,3201,2017-09-30,4059,I like it very much and the quality is good. 230,JKHU-Q-8865-#uO5,2017-09-29,C,2017 Autumn New Clothes with Chiffon Shirt,black,M,2056,2017-10-02,3842,very good
Log in to the OBS console, click Create Parallel File System, configure the following parameters, and click Create Now.
Table 2 Bucket parameters¶ Parameter
Value
Region
Based on site requirements
Data Redundancy Policy
Single-AZ storage
Bucket Name
mrs-datasource
Default Storage Class
Standard
Bucket Policy
Private
Default Encryption
Disable
Direct Reading
Disable
Enterprise Project
default
Tags
N/A
Switch back to the MRS console and click the name of the created MRS cluster. On the Dashboard page, click the Synchronize button next to IAM User Sync. The synchronization takes about 5 minutes.
Click Nodes and click a master node. On the displayed page, switch to the EIPs tab, click Bind EIP, select an existing EIP, and click OK. If no EIP is available, create one. Record the EIP.
(Optional) Connect Hive to OBS.
Note
Perform this step when Hive interconnects with OBS. Skip this step when Hive interconnects with HDFS.
Go back to the MRS cluster page. Click the cluster name. On the Dashboard tab page of the cluster details page, click Access Manager. If a message is displayed indicating that EIP needs to be bound, bind an EIP first.
In the Access MRS Manager dialog box, click OK. You will be redirected to the MRS Manager login page. Enter the username admin and its password for logging in to MRS Manager. The password is the one you entered when creating the MRS cluster.
Interconnect Hive with OBS by referring to .
Download the client.
Go back to the MRS cluster page. Click the cluster name. On the Dashboard tab page of the cluster details page, click Access Manager. If a message is displayed indicating that EIP needs to be bound, bind an EIP first.
In the Access MRS Manager dialog box, click OK. You will be redirected to the MRS Manager login page. Enter the username admin and its password for logging in to MRS Manager. The password is the one you entered when creating the MRS cluster.

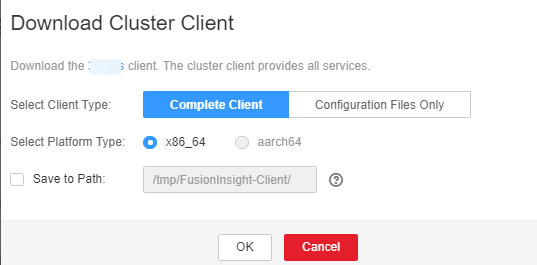

Choose Services > Download Client. Set Client Type to Only configuration files and set Download To to Server. Click OK.
Log in to the active master node as user root and update the client configuration of the active management node.
cd /opt/client
sh refreshConfig.sh /opt/client Full_path_of_client_configuration_file_package
In this tutorial, run the following command:
sh refreshConfig.sh /opt/client /tmp/MRS-client/MRS_Services_Client.tar
Switch to user omm and go to the directory where the Hive client is located.
su - omm
cd /opt/client
Create the product_info table whose storage format is TEXTFILE on Hive.
Import environment variables to the /opt/client directory.
source bigdata_env
Note
If find: 'opt/client/Hudi': Permission denied is displayed, ignore it. This does not affect subsequent operations.
Log in to the Hive client.
If Kerberos authentication is enabled for the current cluster, run the command below to authenticate the current user. The current user must have the permission to create Hive tables. For details, see "Creating a Role" in MapReduce Service User Guide.
Configure roles with corresponding permissions. For details, see "Creating a Role" in MapReduce Service User Guide.. Bind a role to the user. If Kerberos authentication is not enabled for the current cluster, you do not need to run the following command:
kinit MRS cluster user
Run the following command to start the Hive client:
beeline
Run the following SQL commands in sequence to create a demo database and the product_info table:
CREATE DATABASE demo;
USE demo;
DROP TABLE product_info; CREATE TABLE product_info ( product_price int , product_id char(30) , product_time date , product_level char(10) , product_name varchar(200) , product_type1 varchar(20) , product_type2 char(10) , product_monthly_sales_cnt int , product_comment_time date , product_comment_num int , product_comment_content varchar(200) ) row format delimited fields terminated by ',' stored as TEXTFILE;
Import the product_info.txt file to Hive.
Hive is interconnected with OBS: Go back to OBS Console, click the name of the bucket, choose Objects > Upload Object, and upload the product_info.txt file to the path of the product_info table in the OBS bucket.
Hive is interconnected with HDFS: Import the product_info.txt file to the HDFS path /user/hive/warehouse/demo.db/product_info/. For operations related to importing data to the MRS cluster, see section "Cluster Operation Guide" > "Managing Active Clusters" > "Managing Data Files" in the MapReduce Service User Guide..
Create an ORC table and import data to the table.
Run the following SQL commands to create an ORC table:
DROP TABLE product_info_orc; CREATE TABLE product_info_orc ( product_price int , product_id char(30) , product_time date , product_level char(10) , product_name varchar(200) , product_type1 varchar(20) , product_type2 char(10) , product_monthly_sales_cnt int , product_comment_time date , product_comment_num int , product_comment_content varchar(200) ) row format delimited fields terminated by ',' stored as orc;
Insert data in the product_info table into the Hive ORC table product_info_orc.
insert into product_info_orc select * from product_info;
Query whether the data import is successful.
select * from product_info_orc;
Creating an MRS Data Source Connection¶
Log in to the GaussDB(DWS) console and click the created GaussDB(DWS) cluster. Ensure that the GaussDB(DWS) and MRS clusters are in the same region, AZ, and VPC subnet.

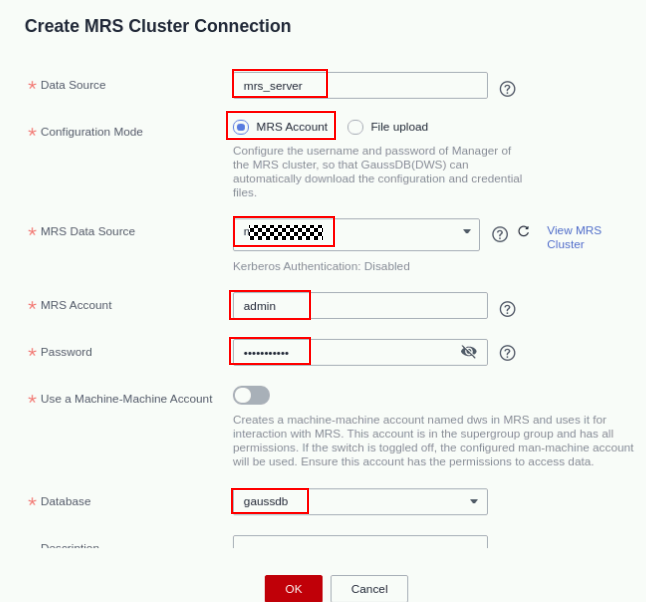

Click the MRS Data Source tab and click Create MRS Cluster Connection.
Set the following parameters and click OK.
Data Source: mrs_server
Configuration Mode: MRS Account
MRS Data Source: Select the created mrs_01 cluster.
MRS Account: admin
Password: Enter the password of the admin user created for the MRS data source.
Creating a Foreign Server¶
Perform this step only when Hive interconnects with OBS. Skip this step when Hive interconnects with HDFS.
Use Data Studio to connect to the created GaussDB(DWS) cluster.
Run the following statement to create a foreign server.
Important
Hard-coded or plaintext AK and SK are risky. For security purposes, encrypt your AK and SK and store them in the configuration file or environment variables.
CREATE SERVER obs_server FOREIGN DATA WRAPPER DFS_FDW OPTIONS ( address 'obs.example.com:5443', //Address for accessing OBS encrypt 'on', access_key '{AK value}', secret_access_key '{SK value}', type 'obs' );
Check the foreign server.
SELECT * FROM pg_foreign_server WHERE srvname='obs_server';
The server is successfully created if information similar to the following is displayed:
srvname | srvowner | srvfdw | srvtype | srvversion | srvacl | srvoptions --------------------------------------------------+----------+--------+---------+------------+--------+--------------------------------------------------------------------------------------------------------------------- obs_server | 16476 | 14337 | | | | {address=obs.example.com:5443,type=obs,encrypt=on,access_key=***,secret_access_key=***} (1 row)
Create an external schema.¶
Obtain the internal IP address and port number of the Hive metastore service and the name of the Hive database to be accessed.
Log in to the MRS console.
Choose Cluster > Active Cluster and click the name of the cluster to be queried to enter the page displaying the cluster's basic information.
Click Go to manager on the O&M Management page and enter the username and password to log in to the management page.
Click Cluster, Hive, Configuration, All Configurations, MetaStore, and Port in sequence, and record the value of hive.metastore.port.
Click Cluster, Hive, and Instance in sequence, and record the MetaStore management IP address of the host whose name contains master1.
Create an external schema.
//When interconnecting Hive with OBS: Set SERVER to the name of the external server created in , DATABASE to the database created on Hive, METAADDRESS to the IP address and port number of the Hive metastore service recorded in , and CONFIGURATION to the default configuration path of the MRS data source. DROP SCHEMA IF EXISTS ex1; CREATE EXTERNAL SCHEMA ex1 WITH SOURCE hive DATABASE 'demo' SERVER obs_server METAADDRESS '***.***.***.***:***' CONFIGURATION '/MRS/gaussdb/mrs_server' //When interconnecting Hive with HDFS: Set SERVER to mrs_server (name of the data source created in ), METAADDRESS to the IP address and port number of the Hive metastore service recorded in , and CONFIGURATION to the default configuration path of the MRS data source. DROP SCHEMA IF EXISTS ex1; CREATE EXTERNAL SCHEMA ex1 WITH SOURCE hive DATABASE 'demo' SERVER mrs_server METAADDRESS '***.***.***.***:***' CONFIGURATION '/MRS/gaussdb/mrs_server'
View the created external schema.
SELECT * FROM pg_namespace WHERE nspname='ex1'; SELECT * FROM pg_external_namespace WHERE nspid = (SELECT oid FROM pg_namespace WHERE nspname = 'ex1'); nspid | srvname | source | address | database | confpath | ensoptions | catalog --------------------------------------------------+----------+--------+---------+------------+--------+--------------------------------------------------------------------------------------------------------------------- 16393 | obs_server | hive | ***.***.***.***:*** | demo | *** | | (1 row)
Importing Data¶
Create a local table for data import.
DROP TABLE IF EXISTS product_info; CREATE TABLE product_info ( product_price integer , product_id char(30) , product_time date , product_level char(10) , product_name varchar(200) , product_type1 varchar(20) , product_type2 char(10) , product_monthly_sales_cnt integer , product_comment_time date , product_comment_num integer , product_comment_content varchar(200) ) ;
Import the target table from the Hive table.
INSERT INTO product_info SELECT * FROM ex1.product_info_orc;
Query the import result.
SELECT * FROM product_info;
Exporting Data¶
Create a local source table.
DROP TABLE IF EXISTS product_info_export; CREATE TABLE product_info_export ( product_price integer , product_id char(30) , product_time date , product_level char(10) , product_name varchar(200) , product_type1 varchar(20) , product_type2 char(10) , product_monthly_sales_cnt integer , product_comment_time date , product_comment_num integer , product_comment_content varchar(200) ) ; INSERT INTO product_info_export SELECT * FROM product_info;
Create a target table on Hive.
DROP TABLE product_info_orc_export; CREATE TABLE product_info_orc_export ( product_price int , product_id char(30) , product_time date , product_level char(10) , product_name varchar(200) , product_type1 varchar(20) , product_type2 char(10) , product_monthly_sales_cnt int , product_comment_time date , product_comment_num int , product_comment_content varchar(200) ) row format delimited fields terminated by ',' stored as orc;
Import the local source table to the Hive table.
INSERT INTO ex1.product_info_orc_export SELECT * FROM product_info_export;
Query the import result on Hive
SELECT * FROM product_info_orc_export;
