Uploading a CDM Link Driver

The Java Database Connectivity (JDBC) provides programmatic access to relational databases. Applications can execute SQL statements and retrieve data using the JDBC API.

Before connecting CDM to a relational database, you need to upload the JDK 8 .jar driver of the relational database.

Prerequisites

• A cluster has been created.

• You have downloaded one of the drivers listed in Table 1.

• (Optional) An SFTP link has been created by referring to FTP/SFTP Link Parameters and the corresponding driver has been uploaded to the offline file server.

How Do I Obtain a Driver?

Select a driver version that adapts to the database type. Note that the version of the uploaded driver does not need to match the version of the database to be connected. Obtain the JDK8 .jar driver of the recommended version by referring to Table 1.

Table 1 Drivers

Relational Database Type	Driver Name	How to Obtain	Recommended Version
RDS for MySQL MySQL	MySQL	https://downloads.mysql.com/archives/c-j/	mysql-connector-java-5.1.48.jar
Oracle	ORACLE_6 ORACLE_7 ORACLE_8	Driver packages: https://www.oracle.com/database/technologies/appdev/jdbc-downloads.html Driver packages of historical versions: https://repo1.maven.org/maven2/com/oracle/database/jdbc/	ojdbc8.jar for version 12.2.0.1 Note New versions (for example, Oracle Database 21c (21.3) drivers) are not supported. If they are used, the schema name cannot be obtained during job creation.
RDS for PostgreSQL PostgreSQL	POSTGRESQL	https://mvnrepository.com/artifact/org.postgresql/postgresql	postgresql-42.3.4.jar for version 42.3.4
RDS for SQL Server Microsoft SQL Server	SQLServer	https://docs.microsoft.com/en-us/sql/connect/jdbc/release-notes-for-the-jdbc-driver?view=sql-server-ver15#previous-releases	sqljdbc42.jar
Dameng database	DM	https://eco.dameng.com/download/ Obtain DmJdbcDriver18.jar from the DM installation directory /dmdbms/drivers/jdbc.	DmJdbcDriver18.jar
POSTGRESQL_KINGBASE	POSTGRESQL_KINGBASE	https://www.kingbase.com.cn/rjcxxz/index.htm	Driver version matching the KingBase database version

Procedure

1. Access the CDM console, choose Cluster Management in the navigation pane, locate the target cluster, and choose Job Management > Link Management > Driver Management. On the Driver Management page, upload a driver.

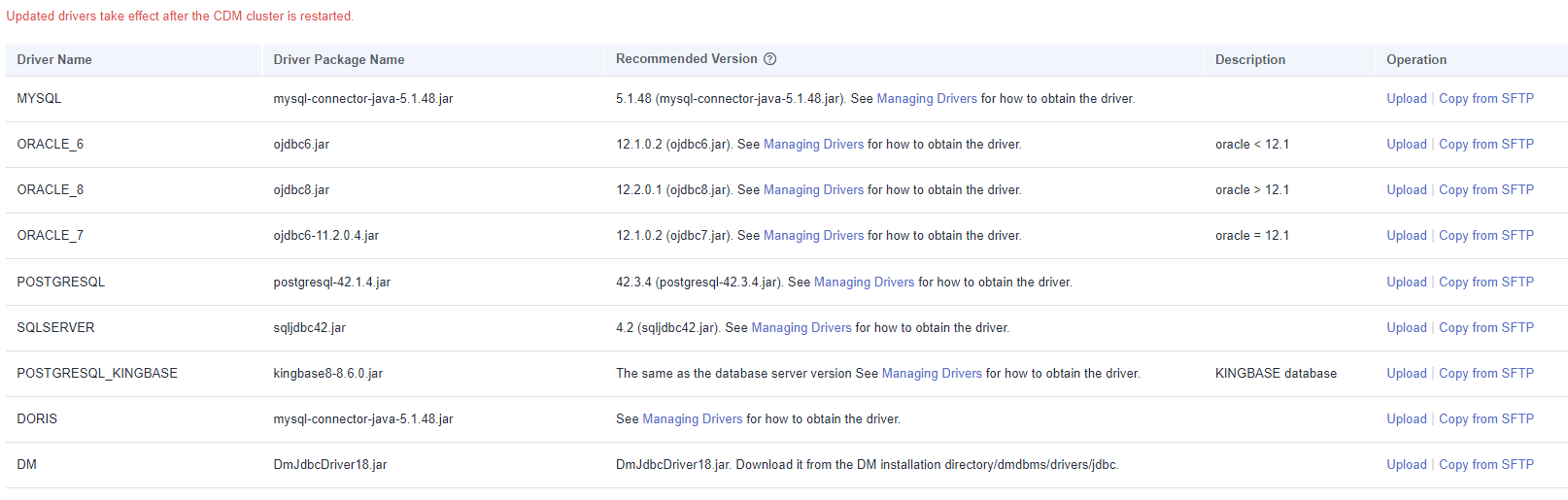

   Figure 1 Uploading a driver

2. Click Upload in the Operation column and select a local driver.

   Alternatively, click Copy from SFTP in the Operation column and configure the SFTP Link name and Driver File Path.

3. (Optional) If you have uploaded an updated version of a driver, you must restart the CDM cluster for the new driver to take effect.
