Creating a MySQL Link¶
MySQL links are applicable to third-party cloud MySQL services and MySQL created in a local data center or ECS. This tutorial describes how to create a MySQL link.
Prerequisites¶
You have obtained the IP address, port, database name, username, and password for connecting to the MySQL database. In addition, the user must have the read and write permissions on the MySQL database.
The on-premises MySQL database can be accessed through the public network. If the MySQL database is deployed on an on-premises data center or a third-party cloud, ensure that an IP address that can be accessed from the public network has been configured for the MySQL database, or the VPN or Direct Connect between the on-premises data center and the cloud service platform has been established.
You have created a CDM cluster.
Creating a MySQL Link¶
Access the CDM console, choose Cluster Management in the navigation pane, locate the target cluster, and choose Job Management > Link Management > Driver Management. The Driver Management page is displayed.
On the Driver Management page, click the document link in the Recommended Version column of the MySQL driver and obtain the driver file as instructed.
On the Driver Management page, upload the MySQL driver using either of the following methods:
Click Upload in the Operation column and select a local driver.
Alternatively, click Copy from SFTP in the Operation column and configure the SFTP Link name and Driver File Path.
On the Cluster Management page, click Job Management of the cluster and choose Links > Create Link to enter the page for selecting the connector.

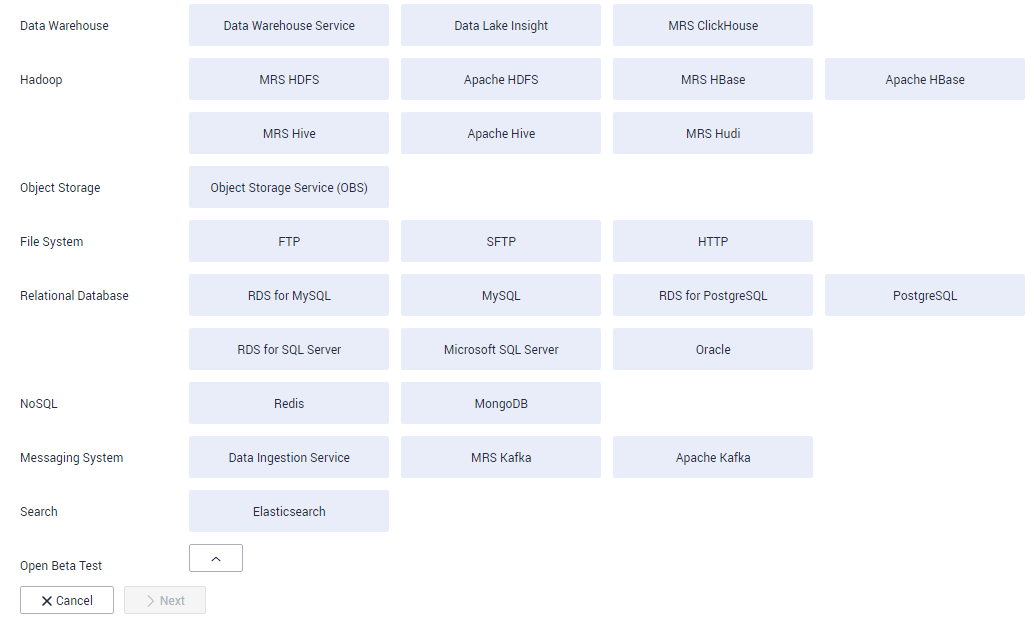

Figure 1 Selecting a connector type¶
Select MySQL and click Next to configure parameters for the MySQL link.
Table 1 MySQL link parameters¶ Parameter
Description
Example Value
Name
Enter a unique link name.
mysqllink
Database Server
IP address or domain name of the MySQL database
192.168.1.110
Port
MySQL database port
3306
Database Name
Name of the MySQL database
sqoop
Username
User who has the read, write, and delete permissions on the MySQL database
admin
Password
Password of the user
-Use Local API
Whether to use the local API of the database for acceleration. (The system attempts to enable the local_infile system variable of the MySQL database.)
Yes
Use Agent
Whether to extract data from the data source through an agent
Yes
local_infile Character Set
When using local_infile to import data to MySQL, you can configure the encoding format.
utf8
Driver Version
A driver version that adapts to MySQL
-Agent
Click Select and select the created agent.
-Fetch Size
Number of rows obtained by each request
1000
Commit Size
Obtaining data from the source through the agent
1000
Link Attributes
Custom attributes of the link
useCompression=true
Reference Sign
Delimiter used to separate referenced table names or column names This parameter is left blank by default.
'
Batch Size
Number of rows written each time. It should be less than Commit Size. When the number of rows written reaches the value of Commit Size, the rows will be committed to the database.
100
Click Save to return to the Links page.
Note
If an error occurs during the saving, the security settings of the MySQL database are incorrect. In this case, you need to enable the EIP of the CDM cluster to access the MySQL database.
