OpenShift template

1. About

The following tutorial shows you how to register a (trial) subscription key from Red Hat and uses it to create an OpenShift cluster using the OpenShift template.

Important

• The OpenShift template deploys a Self-managed OpenShift Container Platform on Open Telekom Cloud (OTC) with Bring Your Own License (BYOL).

• Your license/subscription will cover technical support from Red Hat as well as upgrades between OpenShift versions. Read more.

• Versions available in the template: 4.12.39, 4.13.19, 4.16.19. Please contact us if you need a specific version.

2. How to use

2.1. How to deploy

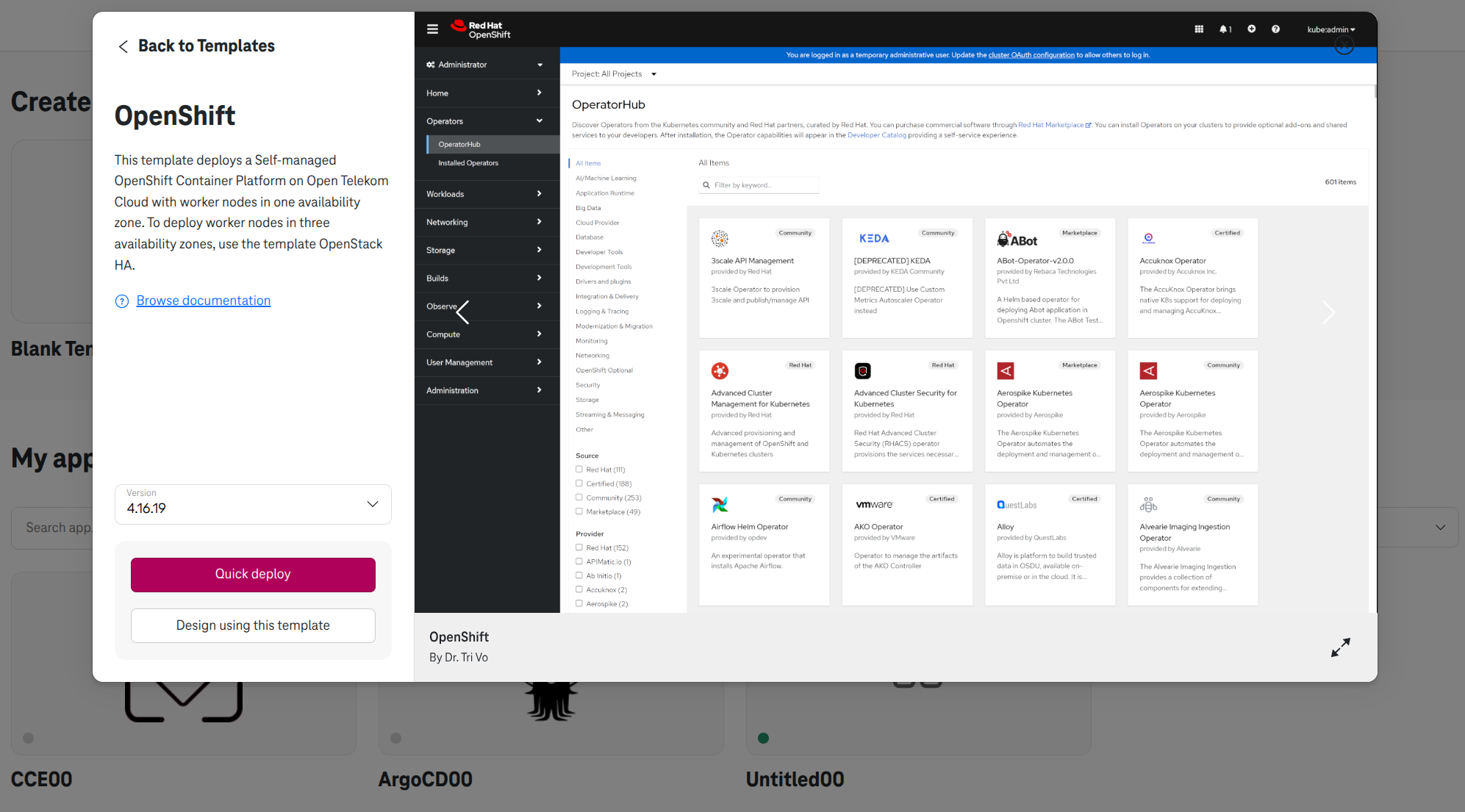

1. Create a new application using the template OpenShift or OpenShift HA with a selected version (e.g., 4.16.19)

2. Go to Quick Deploy.

2.2. Deloy Setup

a. Specify base_domain

Specify the base_domain (e.g., tri-test.com). This is the domain name that you will use to access the OpenShift console after the deployment completes. A DNS Public Zone will be created on OTC with this name. Therefore this domain name must be unique in the Domain Name Service of OTC.

Figure 1. Specify a domain name

Important

Swiss OTC does not support a DNS Public Zone. Here you can bring your own DNS and set it here. After the deployment completes, add a record set type A pointing to the ingress VIP of the OpenShift cluster. See instruction in Option 2. Add nameservers.

b. Specify pull_secret

1. Register a trial account at Red Hat.

2. Go to the Redhat Console and copy the pull secret in Section Downloads / Tokens.

Figure 2. Copy pull secret

3. Paste the content in the pull_secret in the Section Secrets Inputs.

Figure 2. Paste the pull secret

c. Specify os_password

• Specfiy the os_password. This is the password when you login to Cloud Create.

Note

We do not store your password but the OpenShift install needs it one time for the installation process. In the next release, we will replace this password with an application credential for password protection.

d. (Optional) Specify ssh_public_key

• Specify the ssh_public_key with your SSH public key (e.g., ssh-ed25519 AAAAC3N...). This public key will be injected in the bastion host, master and worker nodes so that you can SSH to them later on.

• If ssh_public_key is not specified, we will auto-select one of your existing key pair from the OTC console instead.

Figure 3. Specify your SSH public key

e. (Optional) Specify other paramters

1. Specify the number_workers (e.g., 2). OpenShift requires a minimum of 2 worker nodes in total.

2. Specify the nat_gateway_specs (e.g., Small). This is the flavor of the NAT Gateway for outgoing traffic.

3. Specify the worker_num_cpus (e.g., 4) and worker_mem_size (e.g., 16 GB). OpenShift requires a minimum of 4vCPU and 16 GB memory for the worker node.

Figure 4. Specify your SSH public key

3. Expect result

• It takes about 2 minutes to create all compute resources on OTC. Afterwards, the OpenShift bootstrap process continues to setup the master and worker nodes.

• After about 31 minutes, the CheckOpenShiftStatus job checks the OpenShift boostrap process and reports the status.

Figure 5. CheckOpenShiftStatus waits 31 minutes and checks the status

3.1. Access the console

First, you need to resolve the hostname of the OpenShift console as follows.

Option 1. Add hostname in /etc/host

• Copy console_hostname, oauth_hostanme, and the INGRESS_VIP from the deployment outputs.

Figure 6. Copy the hostname and VIP address

• Paste console_hostname and oauth_hostanme and the INGRESS_VIP in your /etc/hosts

# vim /etc/hosts
80.158.36.243 console-openshift-console.apps.openshift.tri-test.com
80.158.36.243 oauth-openshift.apps.openshift.tri-test.com

Option 2. Add nameservers

On OTC, a DNS public zone is created with the record sets type A pointing to the ingress VIP address of the OpenShift cluster as follows:

Figure 7. A DNS public zone is created on OTC

It means, if you add the nameservers ns1.open-telekom-cloud.com (80.158.48.19) or ns2.open-telekom-cloud.com (93.188.242.252) to your machine, you can access the OpenShift console URL.

Important

Swiss OTC does not support a DNS Public Zone. However, you can register a DNS somewhere else. For example, first you register a domain name on a free DNS like ClouDNS (e.g., tri-test.ddns-ip.net). Then you set it to the input base_domain (in Step 2.2a). Finally, you set a record set type A on ClouDNS pointing to the ingress VIP of the OpenShift cluster:

Figure 8. An example with a free DNS on ClouDNS

Now you can access the OpenShift console URL via the web browser with the kubeadmin_username and kubeadmin_password from the deployment outputs.

# The output of the "console_url"
https://console-openshift-console.apps.openshift.tri-test.com

Figure 9. Access the OpenShift console

3.2. Access the bastion host

During the OpenShift bootstrap process, you can access to the bastion host as follows:

• Copy public_address of the Bastionhost

Figure 10. The public IP address of the bastion host

• Access the bastion host with the IP

# We use Ubuntu OS for the bastion host
ssh ubuntu@164.30.10.109

• Check nodes are ready

# Set KUBECONFIG
export KUBECONFIG="/home/ubuntu/openshift/auth/kubeconfig"

# Check all nodes are ready
$ oc get nodes
NAME                        STATUS   ROLES                  AGE    VERSION
openshift-k55b9-master-0    Ready    control-plane,master   179m   v1.26.9+636f2be
openshift-k55b9-master-1    Ready    control-plane,master   179m   v1.26.9+636f2be
openshift-k55b9-master-2    Ready    control-plane,master   179m   v1.26.9+636f2be
openshift-k55b9-workers-0   Ready    worker                 163m   v1.26.9+636f2be
openshift-k55b9-workers-1   Ready    worker                 163m   v1.26.9+636f2be

• Check all cluster operators are available

$ oc get clusteroperators
  NAME                                       VERSION   AVAILABLE   PROGRESSING   DEGRADED   SINCE   MESSAGE
  authentication                             4.13.19   True        False         False      156m
  baremetal                                  4.13.19   True        False         False      174m
  cloud-controller-manager                   4.13.19   True        False         False      3h1m
  cloud-credential                           4.13.19   True        False         False      3h4m
  cluster-autoscaler                         4.13.19   True        False         False      175m
  config-operator                            4.13.19   True        False         False      175m
  console                                    4.13.19   True        False         False      161m
  control-plane-machine-set                  4.13.19   True        False         False      175m
  csi-snapshot-controller                    4.13.19   True        False         False      175m
  dns                                        4.13.19   True        False         False      174m
  etcd                                       4.13.19   True        False         False      174m
  image-registry                             4.13.19   True        False         False      163m
  ingress                                    4.13.19   True        False         False      163m
  insights                                   4.13.19   True        False         False      168m
  kube-apiserver                             4.13.19   True        False         False      164m
  kube-controller-manager                    4.13.19   True        False         False      172m
  kube-scheduler                             4.13.19   True        False         False      172m
  kube-storage-version-migrator              4.13.19   True        False         False      164m
  machine-api                                4.13.19   True        False         False      171m
  machine-approver                           4.13.19   True        False         False      174m
  machine-config                             4.13.19   True        False         False      174m
  marketplace                                4.13.19   True        False         False      174m
  monitoring                                 4.13.19   True        False         False      162m
  network                                    4.13.19   True        False         False      177m
  node-tuning                                4.13.19   True        False         False      174m
  openshift-apiserver                        4.13.19   True        False         False      165m
  openshift-controller-manager               4.13.19   True        False         False      174m
  openshift-samples                          4.13.19   True        False         False      168m
  operator-lifecycle-manager                 4.13.19   True        False         False      174m
  operator-lifecycle-manager-catalog         4.13.19   True        False         False      175m
  operator-lifecycle-manager-packageserver   4.13.19   True        False         False      169m
  service-ca                                 4.13.19   True        False         False      175m
  storage                                    4.13.19   True        False         False      170m

4. Post-installation

4.1. TODO after installation

4.1.1. Change kubeadmin password

Cloud Create auto-generates the kubeadmin password in plaintext for you. Log in the OpenShift console and change it.

4.1.2. Delete bootstrap resources

The bootstrap VM is only needed during the installation. After the installation completes, you can delete it via the Web console.

Figure 11. Go to Web console and delete the VM "bootstrap"

4.2. Maintaining credentials

On OTC, a user password is expired every 3 months (by default). After it is expired, OpenShift cannot authenticate to OTC to provision volumes so you may get the following error:

MountVolume.SetUp failed for volume "pvc-xxx" : rpc error: code = Internal desc = GetVolume failed with error Unable to re-authenticate:
Expected HTTP response code [200] when accessing [GET https://evs.eu-de.otc.t-systems.com/v3/yyy/volumes/zzz],
but got 401 instead Authentication required: Authentication failed

Solution

1. Go to the Web Console and update your password on in the Section Security Settings.

Tip

You can increase the password expired time in the Section Password Policy.

2. Update OpenShift with your new password:

• Go to the OpenShift Console.

• Go to Workloads / Secrets.

• Find and edit the secret openstack-credentials.

• Update the value password in both “clouds.conf” and “clouds.yaml”.

Figure 12. Update the secret openstack-credentials

5. How to create storages

5.1. Elastic Volume Service (EVS)

In OpenShift you can provision an EVS on OTC dynamically:

1. Create a new storage class (e.g., ssd-csi) with a volume type (e.g., SSD):

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: ssd-csi
provisioner: cinder.csi.openstack.org
parameters:
  type: SSD # Choose 'SSD' for 'Ultra high I/O', 'SAS' for 'High I/O', 'SATA' for 'Common I/O'
reclaimPolicy: Delete
allowVolumeExpansion: true
volumeBindingMode: WaitForFirstConsumer # PVC is PENDING until the Pod is created. As a result, the volume is created in the same AZ as the POD.

(Alternative) Create a storage class with specific AZ (e.g., eu-de-01) so that volumes will be created only in this AZ:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: eu-de-01-ssd-csi
provisioner: cinder.csi.openstack.org
parameters:
  type: SSD # Choose 'SSD' for 'Ultra high I/O', 'SAS' for 'High I/O', 'SATA' for 'Common I/O'
reclaimPolicy: Delete
allowVolumeExpansion: true
allowedTopologies:
- matchLabelExpressions:
  - key: topology.cinder.csi.openstack.org/zone
    values:
    - eu-de-01 # Choose 'eu-de-01', 'eu-de-02', 'eu-de-03'

2. Create a PersistentVolumeClaim (e.g., ssd-pvc) with the storage class ssd-csi:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ssd-pvc
  namespace: <YOUR_NAMESPACE>
spec:
  storageClassName: ssd-csi
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 10Gi

3. Create a Pod example with the PersistentVolumeClaim ssd-pvc:

apiVersion: v1
kind: Pod
metadata:
  name: example
  labels:
    app: httpd
  namespace: <YOUR_NAMESPACE>
spec:
  securityContext:
    runAsNonRoot: true
    seccompProfile:
      type: RuntimeDefault
  containers:
    - name: httpd
      image: 'image-registry.openshift-image-registry.svc:5000/openshift/httpd:latest'
      ports:
        - containerPort: 8080
      securityContext:
        allowPrivilegeEscalation: false
        capabilities:
          drop:
            - ALL
      volumeMounts: # Add the following lines to the 'example' Pod to test the PVC
        - name: ssd-volume
          mountPath: /test
  volumes:
    - name: ssd-volume
      persistentVolumeClaim:
        claimName: ssd-pvc

4. On OpenShift console, see Pod is running:

Figure 13. Pod example is running

5. On OTC, see EVS is created:

Figure 14. A new EVS is created with the volume type "Ultra High I/O"

5.2. Scalable File Service & SFS Turbo

You can create a SFS on OTC manually and create a PersistentVolume using NFS in OpenShift, which connects to SFS via NFS protocol:

1. Go to the webconsole of OTC and create a SFS or SFS Turbo:

Figure 15. Create SFS via webconsole

• Choose the VPC and subnet of your OpenShift so that the SFS is created in the same subnet. The VPC cc-environment-openshift00 in this example was created by Cloud Create, which starts with the prefix cc, followed by the environement name enviroment and the application name openshift00.

• Choose the security group sg-worker. This is the security group of the worker nodes.

2. Copy the SFS endpoint

Figure 16. Copy the SFS endpoint 10.0.207.136

3. Create a PersistentVolume (e.g., sfs-pv) with the SFS endpoint:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: sfs-pv
spec:
  capacity:
    storage: 500Gi
  accessModes:
  - ReadWriteMany
  nfs:
    server: 10.0.207.136 # SFS endpoint
    path: /
  persistentVolumeReclaimPolicy: Retain

4. Create a PersistentVolumeClaim (e.g., sfs-pvc) with the sfs-pv:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sfs-pvc
  namespace: <YOUR_NAMESPACE>
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 500Gi
  volumeName: sfs-pv
  storageClassName: "" # Important

5. Create a Pod to use sfs-pvc

6. Tear down

• In Cloud Create, go to Action / Undeploy to delete the OpenShift cluster.

• The PVC storages, which were created by OpenShift, will not be deleted automatically. You have to delete them manually.
