NUMA Affinity Scheduling¶

Background¶

When a node runs many CPU-bound pods, the workload can move to different CPU cores depending on whether the pod is throttled and which CPU cores are available at scheduling time. Many workloads are not sensitive to this migration and work fine without any intervention. However, in workloads where CPU cache affinity and scheduling latency significantly affect workload performance, additional latency will occur when CPU cores are from different NUMA nodes. To resolve this issue, kubelet allows you to use Topology Manager to replace the CPU management policies to determine node allocation.

Both the CPU Manager and Topology Manager are kubelet components, but they have the following limitations:

The scheduler is not topology-aware. Therefore, the workload may be scheduled on a node and then fail on the node due to the Topology Manager. This is unacceptable for TensorFlow jobs. If any worker or ps failed on node, the job will fail.
The managers are node-level that results in an inability to match the best node for NUMA topology in the whole cluster.

Volcano targets to lift the limitation to make scheduler NUMA topology aware so that:

Pods are not scheduled to the nodes that NUMA topology does not match.
Pods are scheduled to the most suitable node for NUMA topology.

For more information, see https://github.com/volcano-sh/volcano/blob/master/docs/design/numa-aware.md.

Application Scope¶

CPU resource topology scheduling
Pod-level topology policies

Pod Scheduling Prediction¶

After a topology policy is configured for pods, Volcano predicts matched nodes based on the topology policy. The scheduling process is as follows:

Volcano filters nodes with the same policy based on the topology policy configured for pods. The topology policy provided by Volcano is the same as that provided by the topology manager.
Among the nodes where the same policy applies, Volcano selects the nodes whose CPU topology meets the policy requirements for scheduling.

Volcano Topology Policy	Node Scheduling
	Filter nodes with the same policy.	Check whether node's CPU topology meets the policy requirements.
none	No filtering: none: schedulable best-effort: schedulable restricted: schedulable single-numa-node: schedulable	None
best-effort	Filter the nodes with the best-effort topology policy. none: unschedulable best-effort: schedulable restricted: unschedulable single-numa-node: unschedulable	Best-effort scheduling: Pods are preferentially scheduled to a single NUMA node. If a single NUMA node cannot meet the requested CPU cores, the pods can be scheduled to multiple NUMA nodes.
restricted	Filter the nodes with the restricted topology policy. none: unschedulable best-effort: unschedulable restricted: schedulable single-numa-node: unschedulable	Restricted scheduling: If the upper CPU limit of a single NUMA node is greater than or equal to the requested CPU cores, pods can only be scheduled to a single NUMA node. If the remaining CPU cores of a single NUMA node are insufficient, the pods cannot be scheduled. If the upper CPU limit of a single NUMA node is less than the requested CPU cores, pods can be scheduled to multiple NUMA nodes.
single-numa-node	Filter the nodes with the single-numa-node topology policy. none: unschedulable best-effort: unschedulable restricted: unschedulable single-numa-node: schedulable	Pods can only be scheduled to a single NUMA node.

For example, two NUMA nodes provide resources, each with a total of 32 CPU cores. The following table lists resource allocation.

Worker Node	Node Topology Policy	Total CPU Cores on NUMA Node 1	Total CPU Cores on NUMA Node 2
Node 1	best-effort	16	16
Node 2	restricted	16	16
Node 3	restricted	16	16
Node 4	single-numa-node	16	16

Figure 1 shows the scheduling of a pod after a topology policy is configured.

When 9 CPU cores are requested by a pod and the best-effort topology policy is used, Volcano selects node 1 whose topology policy is also best-effort, and this policy allows the pod to be scheduled to multiple NUMA nodes. Therefore, the requested 9 CPU cores will be allocated to two NUMA nodes, and the pod can be scheduled to node 1.
When 9 CPU cores are requested by a pod and the restricted topology policy is used, Volcano selects nodes 2 and 3 whose topology policy is also restricted, and each node provides a total of 9 CPU cores. However, the remaining CPU cores on node 2 or 3 are less than the requested. Therefore, the pod cannot be scheduled.
When 17 CPU cores are requested by a pod and the restricted topology policy is used, Volcano selects nodes 2 and 3 whose topology policy is also restricted, this policy allows the pod to be scheduled to multiple NUMA nodes, and the upper CPU limit of both the nodes is less than 17. Then, the pod can be scheduled to node 3.
When 17 CPU cores are requested by a pod and the single-numa-node topology policy is used, Volcano selects nodes whose topology policy is also single-numa-node. However, no node can provide a total of 17 CPU cores. Therefore, the pod cannot be scheduled.

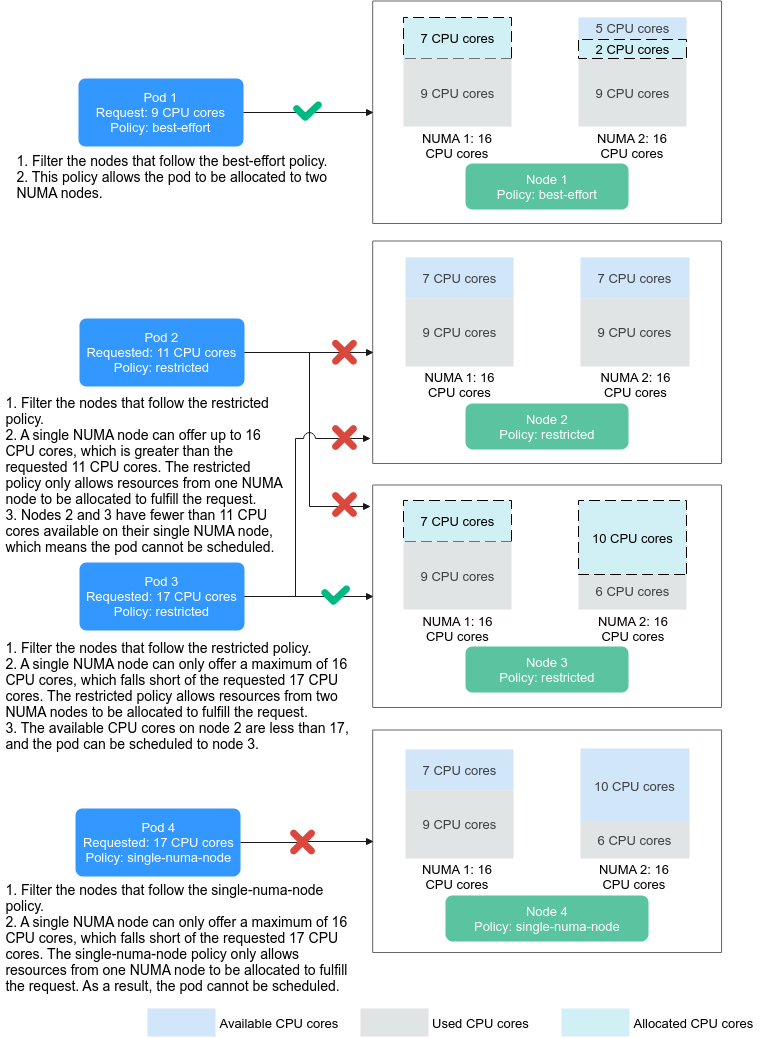

**Figure 1** Comparison of NUMA scheduling policies¶

Scheduling Priority¶

A topology policy aims to schedule pods to the optimal node. In this example, each node is scored to sort out the optimal node.

Principle: Schedule pods to the worker nodes that require the fewest NUMA nodes.

The scoring formula is as follows:

score = weight x (100 - 100 x numaNodeNum/maxNumaNodeNum)

Parameters:

weight: the weight of NUMA Aware Plugin.
numaNodeNum: the number of NUMA nodes required for running the pod on worker nodes.
maxNumaNodeNum: the maximum number of NUMA nodes required for running the pod among all worker nodes.

For example, three nodes meet the CPU topology policy for a pod and the weight of NUMA Aware Plugin is set to 10.

Node A: One NUMA node provides the CPU resources required by the pod (numaNodeNum = 1).
Node B: Two NUMA nodes provide the CPU resources required by the pod (numaNodeNum = 2).
Node C: Four NUMA nodes provide the CPU resources required by the pod (numaNodeNum = 4).

According to the preceding formula, maxNumaNodeNum is 4.

score(Node A) = 10 x (100 - 100 x 1/4) = 750
score(Node B) = 10 x (100 - 100 x 2/4) = 500
score(Node C) = 10 x (100 - 100 x 4/4) = 0

Therefore, the optimal node is Node A.

Enabling NUMA Affinity Scheduling for Volcano¶

Enable static CPU management. For details, see Enabling the CPU Management Policy.
Configure a CPU topology policy.
1. Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Nodes. On the right of the page, click the Node Pools tab and choose More > Manage in the Operation column of the target node pool.
2. Change the kubelet Topology Management Policy (topology-manager-policy) value to the required CPU topology policy.
  Valid topology policies include none, best-effort, restricted, and single-numa-node. For details, see Pod Scheduling Prediction.

Enable the numa-aware add-on and the resource_exporter function.

Volcano 1.7.1 or later

Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Add-ons. On the right of the page, locate the Volcano add-on and click Edit. In the Parameters area, configure Volcano scheduler parameters.

...
    "default_scheduler_conf": {
        "actions": "allocate, backfill, preempt",
        "tiers": [
            {
                "plugins": [
                    {
                        "name": "priority"
                    },
                    {
                        "name": "gang"
                    },
                    {
                        "name": "conformance"
                    }
                ]
            },
            {
                "plugins": [
                    {
                        "name": "drf"
                    },
                    {
                        "name": "predicates"
                    },
                    {
                        "name": "nodeorder"
                    }
                ]
            },
            {
                "plugins": [
                    {
                        "name": "cce-gpu-topology-predicate"
                    },
                    {
                        "name": "cce-gpu-topology-priority"
                    },
                    {
                        "name": "cce-gpu"
                    },
                    {
                        // add this also enable resource_exporter
                        "name": "numa-aware",
                        // the weight of the NUMA Aware Plugin
                        "arguments": {
                           "weight": "10"
                        }
                    }
                ]
            },
            {
                "plugins": [
                    {
                        "name": "nodelocalvolume"
                    },
                    {
                        "name": "nodeemptydirvolume"
                    },
                    {
                        "name": "nodeCSIscheduling"
                    },
                    {
                        "name": "networkresource"
                    }
                ]
            }
        ]
    },
...

Volcano earlier than 1.7.1

The resource_exporter_enable parameter is enabled for the Volcano add-on to collect node NUMA information.

{
   "plugins": {
      "eas_service": {
         "availability_zone_id": "",
         "driver_id": "",
         "enable": "false",
         "endpoint": "",
         "flavor_id": "",
         "network_type": "",
         "network_virtual_subnet_id": "",
         "pool_id": "",
         "project_id": "",
         "secret_name": "eas-service-secret"
      }
   },
   "resource_exporter_enable": "true"
}

After this function is enabled, you can view the NUMA topology information of the current node.

kubectl get numatopo
NAME              AGE
node-1            4h8m
node-2            4h8m
node-3            4h8m

Enable the Volcano numa-aware algorithm add-on.

kubectl edit cm -n kube-system volcano-scheduler-configmap

kind: ConfigMap
apiVersion: v1
metadata:
  name: volcano-scheduler-configmap
  namespace: kube-system
data:
  default-scheduler.conf: |-
    actions: "allocate, backfill, preempt"
    tiers:
    - plugins:
      - name: priority
      - name: gang
      - name: conformance
    - plugins:
      - name: overcommit
      - name: drf
      - name: predicates
      - name: nodeorder
    - plugins:
      - name: cce-gpu-topology-predicate
      - name: cce-gpu-topology-priority
      - name: cce-gpu
    - plugins:
      - name: nodelocalvolume
      - name: nodeemptydirvolume
      - name: nodeCSIscheduling
      - name: networkresource
        arguments:
          NetworkType: vpc-router
      - name: numa-aware # add it to enable numa-aware plugin
        arguments:
          weight: 10 # the weight of the NUMA Aware Plugin

Using Volcano to Configure NUMA Affinity Scheduling¶

Refer to the following examples for configuration.

Example 1: Configure NUMA affinity for a Deployment.

kind: Deployment
apiVersion: apps/v1
metadata:
  name: numa-tset
spec:
  replicas: 1
  selector:
    matchLabels:
      app: numa-tset
  template:
    metadata:
      labels:
        app: numa-tset
      annotations:
        volcano.sh/numa-topology-policy: single-numa-node    # Configure the topology policy.
    spec:
      containers:
        - name: container-1
          image: nginx:alpine
          resources:
            requests:
              cpu: 2           # The value must be an integer and must be the same as that in limits.
              memory: 2048Mi
            limits:
              cpu: 2           # The value must be an integer and must be the same as that in requests.
              memory: 2048Mi
      imagePullSecrets:
      - name: default-secret

Example 2: Create a Volcano job and enable NUMA affinity for it.

apiVersion: batch.volcano.sh/v1alpha1
kind: Job
metadata:
  name: vj-test
spec:
  schedulerName: volcano
  minAvailable: 1
  tasks:
    - replicas: 1
      name: "test"
      topologyPolicy: best-effort   # set the topology policy for task
      template:
        spec:
          containers:
            - image: alpine
              command: ["/bin/sh", "-c", "sleep 1000"]
              imagePullPolicy: IfNotPresent
              name: running
              resources:
                limits:
                  cpu: 20
                  memory: "100Mi"
          restartPolicy: OnFailure

Analyze NUMA scheduling.
The following table shows example NUMA nodes.
Worker Node
Topology Manager Policy
Allocatable CPU Cores on NUMA Node 0
Allocatable CPU Cores on NUMA Node 1
Node 1
single-numa-node
16
16
Node 2
best-effort
16
16
Node 3
best-effort
20
20
In the preceding examples,
- In example 1, 2 CPU cores are requested by a pod, and the single-numa-node topology policy is used. Therefore, the pod will be scheduled to node 1 with the same policy.
- In example 2, 20 CPU cores are requested by a pod, and the best-effort topology policy is used. The pod will be scheduled to node 3 because it can allocate all the requested 20 CPU cores onto one NUMA node, while node 2 can do so on two NUMA nodes.

Worker Node	Topology Manager Policy	Allocatable CPU Cores on NUMA Node 0	Allocatable CPU Cores on NUMA Node 1
Node 1	single-numa-node	16	16
Node 2	best-effort	16	16
Node 3	best-effort	20	20

Checking NUMA Node Usage¶

Run the lscpu command to check the CPU usage of the current node.

# Check the CPU usage of the current node.
lscpu
...
CPU(s):              32
NUMA node(s):        2
NUMA node0 CPU(s):   0-15
NUMA node1 CPU(s):   16-31

Then, check the NUMA node usage.

# Check the CPU allocation of the current node.
cat /var/lib/kubelet/cpu_manager_state
{"policyName":"static","defaultCpuSet":"0,10-15,25-31","entries":{"777870b5-c64f-42f5-9296-688b9dc212ba":{"container-1":"16-24"},"fb15e10a-b6a5-4aaa-8fcd-76c1aa64e6fd":{"container-1":"1-9"}},"checksum":318470969}

The preceding example shows that two containers are running on the node. One container uses CPU cores 1 to 9 of NUMA node 0, and the other container uses CPU cores 16 to 24 of NUMA node 1.
