Scheduling EVS Disks Across AZs Using csi-disk-topology¶
Background¶

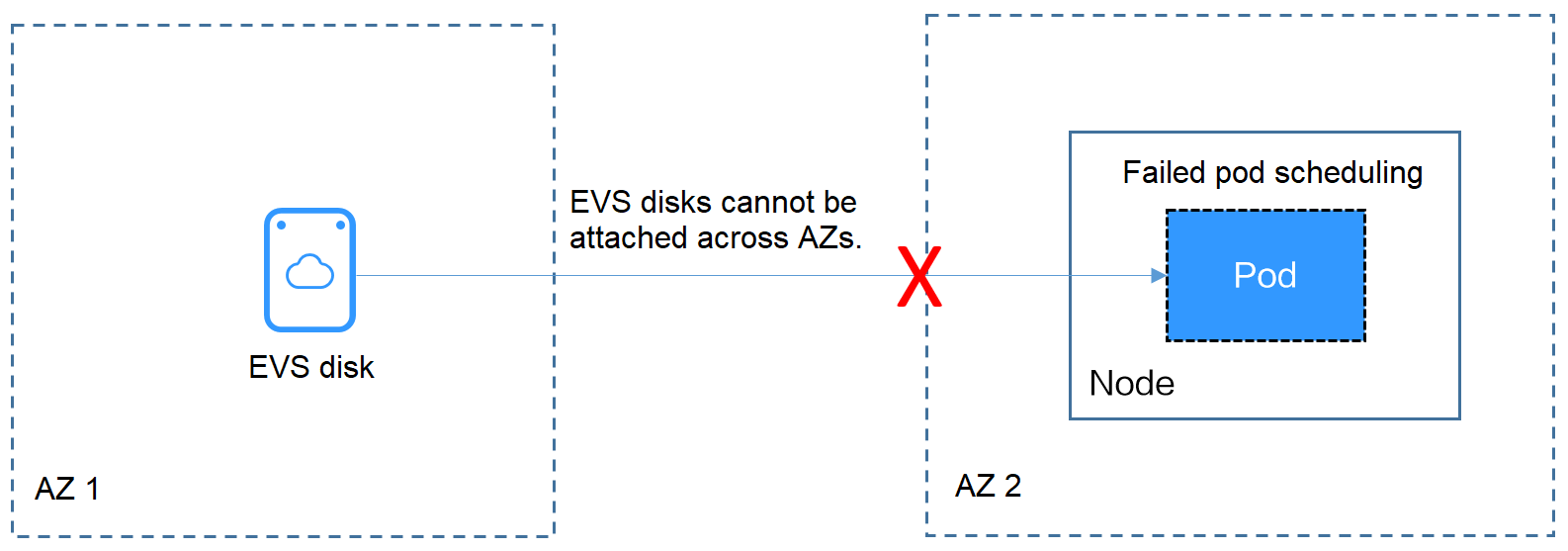

EVS disks cannot be attached to a node deployed in another AZ. For example, the EVS disks in AZ 1 cannot be attached to a node in AZ 2. If the storage class csi-disk is used for StatefulSets, when a StatefulSet is scheduled, a PVC and a PV are created immediately (an EVS disk is created along with the PV), and then the PVC is bound to the PV. However, when the cluster nodes are located in multiple AZs, the EVS disk created by the PVC and the node to which the pods are scheduled may be in different AZs. As a result, the pods fail to be scheduled.
Solution¶

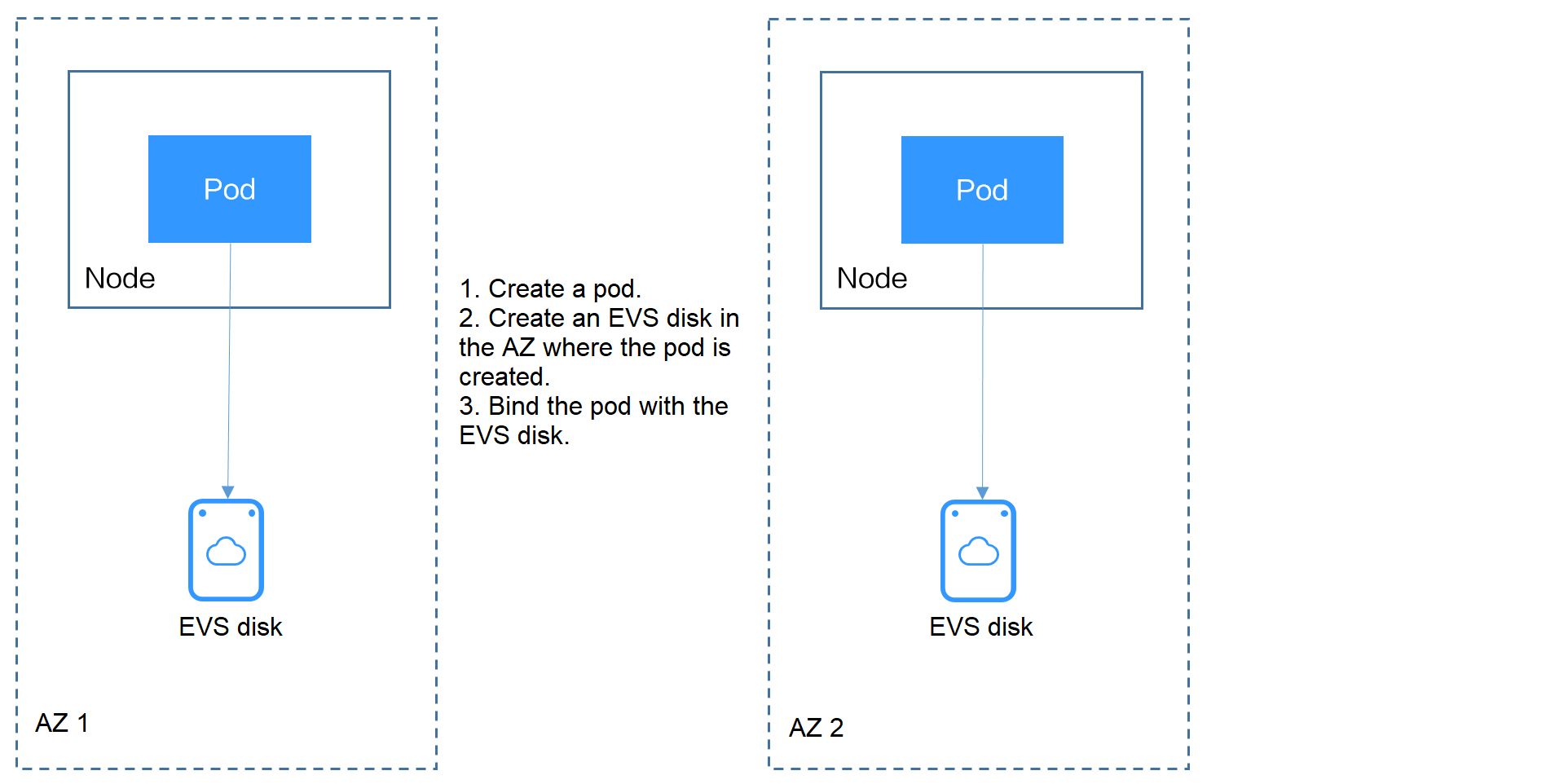

CCE provides a storage class named csi-disk-topology, which is a late-binding EVS disk type. When you use this storage class to create a PVC, no PV will be created in pace with the PVC. Instead, the PV is created in the AZ of the node where the pod will be scheduled. An EVS disk is then created in the same AZ to ensure that the EVS disk can be attached and the pod can be successfully scheduled.
Failed Pod Scheduling Due to csi-disk Used in Cross-AZ Node Deployment¶
Create a cluster with three nodes in different AZs.
Use the csi-disk storage class to create a StatefulSet and check whether the workload is successfully created.
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nginx
spec:
serviceName: nginx # Name of the headless Service
replicas: 4
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: container-0
image: nginx:alpine
resources:
limits:
cpu: 600m
memory: 200Mi
requests:
cpu: 600m
memory: 200Mi
volumeMounts: # Storage mounted to the pod
- name: data
mountPath: /usr/share/nginx/html # Mount the storage to /usr/share/nginx/html.
imagePullSecrets:
- name: default-secret
volumeClaimTemplates:
- metadata:
name: data
annotations:
everest.io/disk-volume-type: SAS
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: csi-disk
The StatefulSet uses the following headless Service.
apiVersion: v1
kind: Service # Object type (Service)
metadata:
name: nginx
labels:
app: nginx
spec:
ports:
- name: nginx # Name of the port for communication between pods
port: 80 # Port number for communication between pods
selector:
app: nginx # Select the pod whose label is app:nginx.
clusterIP: None # Set this parameter to None, indicating the headless Service.
After the creation, check the PVC and pod status. In the following output, the PVC has been created and bound successfully, and a pod is in the Pending state.
# kubectl get pvc -owide
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE VOLUMEMODE
data-nginx-0 Bound pvc-04e25985-fc93-4254-92a1-1085ce19d31e 1Gi RWO csi-disk 64s Filesystem
data-nginx-1 Bound pvc-0ae6336b-a2ea-4ddc-8f63-cfc5f9efe189 1Gi RWO csi-disk 47s Filesystem
data-nginx-2 Bound pvc-aa46f452-cc5b-4dbd-825a-da68c858720d 1Gi RWO csi-disk 30s Filesystem
data-nginx-3 Bound pvc-3d60e532-ff31-42df-9e78-015cacb18a0b 1Gi RWO csi-disk 14s Filesystem
# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-0 1/1 Running 0 2m25s 172.16.0.12 192.168.0.121 <none> <none>
nginx-1 1/1 Running 0 2m8s 172.16.0.136 192.168.0.211 <none> <none>
nginx-2 1/1 Running 0 111s 172.16.1.7 192.168.0.240 <none> <none>
nginx-3 0/1 Pending 0 95s <none> <none> <none> <none>
The event information of the pod shows that the scheduling fails due to no available node. Two nodes (in AZ 1 and AZ 2) do not have sufficient CPUs, and the created EVS disk is not in the AZ where the third node (in AZ 3) is located. As a result, the pod cannot use the EVS disk.
# kubectl describe pod nginx-3
Name: nginx-3
...
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 111s default-scheduler 0/3 nodes are available: 3 pod has unbound immediate PersistentVolumeClaims.
Warning FailedScheduling 111s default-scheduler 0/3 nodes are available: 3 pod has unbound immediate PersistentVolumeClaims.
Warning FailedScheduling 28s default-scheduler 0/3 nodes are available: 1 node(s) had volume node affinity conflict, 2 Insufficient cpu.
Check the AZ where the EVS disk created from the PVC is located. It is found that data-nginx-3 is in AZ 1. In this case, the node in AZ 1 has no resources, and only the node in AZ 3 has CPU resources. As a result, the scheduling fails. Therefore, there should be a delay between creating the PVC and binding the PV.
Storage Class for Delayed Binding¶
If you check the cluster storage class, you can see that the binding mode of csi-disk-topology is WaitForFirstConsumer, indicating that a PV is created and bound when a pod uses the PVC. That is, the PV and the underlying storage resources are created based on the pod information.
# kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
csi-disk everest-csi-provisioner Delete Immediate true 156m
csi-disk-topology everest-csi-provisioner Delete WaitForFirstConsumer true 156m
csi-nas everest-csi-provisioner Delete Immediate true 156m
csi-obs everest-csi-provisioner Delete Immediate false 156m
VOLUMEBINDINGMODE is displayed if your cluster is v1.19. It is not displayed in clusters of v1.17 or v1.15.
You can also view the binding mode in the csi-disk-topology details.
# kubectl describe sc csi-disk-topology
Name: csi-disk-topology
IsDefaultClass: No
Annotations: <none>
Provisioner: everest-csi-provisioner
Parameters: csi.storage.k8s.io/csi-driver-name=disk.csi.everest.io,csi.storage.k8s.io/fstype=ext4,everest.io/disk-volume-type=SAS,everest.io/passthrough=true
AllowVolumeExpansion: True
MountOptions: <none>
ReclaimPolicy: Delete
VolumeBindingMode: WaitForFirstConsumer
Events: <none>
Create PVCs of the csi-disk and csi-disk-topology classes. Observe the differences between these two types of PVCs.
csi-disk
apiVersion: v1 kind: PersistentVolumeClaim metadata: name: disk annotations: everest.io/disk-volume-type: SAS spec: accessModes: - ReadWriteOnce resources: requests: storage: 10Gi storageClassName: csi-disk # StorageClass
csi-disk-topology
apiVersion: v1 kind: PersistentVolumeClaim metadata: name: topology annotations: everest.io/disk-volume-type: SAS spec: accessModes: - ReadWriteOnce resources: requests: storage: 10Gi storageClassName: csi-disk-topology # StorageClass
View the PVC details. As shown below, the csi-disk PVC is in Bound state and the csi-disk-topology PVC is in Pending state.
# kubectl create -f pvc1.yaml
persistentvolumeclaim/disk created
# kubectl create -f pvc2.yaml
persistentvolumeclaim/topology created
# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
disk Bound pvc-88d96508-d246-422e-91f0-8caf414001fc 10Gi RWO csi-disk 18s
topology Pending csi-disk-topology 2s
View details about the csi-disk-topology PVC. You can see that "waiting for first consumer to be created before binding" is displayed in the event, indicating that the PVC is bound after the consumer (pod) is created.
# kubectl describe pvc topology
Name: topology
Namespace: default
StorageClass: csi-disk-topology
Status: Pending
Volume:
Labels: <none>
Annotations: everest.io/disk-volume-type: SAS
Finalizers: [kubernetes.io/pvc-protection]
Capacity:
Access Modes:
VolumeMode: Filesystem
Used By: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal WaitForFirstConsumer 5s (x3 over 30s) persistentvolume-controller waiting for first consumer to be created before binding
Create a workload that uses the PVC. Set the PVC name to topology.
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
spec:
selector:
matchLabels:
app: nginx
replicas: 1
template:
metadata:
labels:
app: nginx
spec:
containers:
- image: nginx:alpine
name: container-0
volumeMounts:
- mountPath: /tmp # Mount path
name: topology-example
restartPolicy: Always
volumes:
- name: topology-example
persistentVolumeClaim:
claimName: topology # PVC name
After the PVC is created, check the PVC details. You can see that the PVC is bound successfully.
# kubectl describe pvc topology
Name: topology
Namespace: default
StorageClass: csi-disk-topology
Status: Bound
....
Used By: nginx-deployment-fcd9fd98b-x6tbs
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal WaitForFirstConsumer 84s (x26 over 7m34s) persistentvolume-controller waiting for first consumer to be created before binding
Normal Provisioning 54s everest-csi-provisioner_everest-csi-controller-7965dc48c4-5k799_2a6b513e-f01f-4e77-af21-6d7f8d4dbc98 External provisioner is provisioning volume for claim "default/topology"
Normal ProvisioningSucceeded 52s everest-csi-provisioner_everest-csi-controller-7965dc48c4-5k799_2a6b513e-f01f-4e77-af21-6d7f8d4dbc98 Successfully provisioned volume pvc-9a89ea12-4708-4c71-8ec5-97981da032c9
Using csi-disk-topology in Cross-AZ Node Deployment¶
The following uses csi-disk-topology to create a StatefulSet with the same configurations used in the preceding example.
volumeClaimTemplates:
- metadata:
name: data
annotations:
everest.io/disk-volume-type: SAS
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: csi-disk-topology
After the creation, check the PVC and pod status. As shown in the following output, the PVC and pod can be created successfully. The nginx-3 pod is created on the node in AZ 3.
# kubectl get pvc -owide
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE VOLUMEMODE
data-nginx-0 Bound pvc-43802cec-cf78-4876-bcca-e041618f2470 1Gi RWO csi-disk-topology 55s Filesystem
data-nginx-1 Bound pvc-fc942a73-45d3-476b-95d4-1eb94bf19f1f 1Gi RWO csi-disk-topology 39s Filesystem
data-nginx-2 Bound pvc-d219f4b7-e7cb-4832-a3ae-01ad689e364e 1Gi RWO csi-disk-topology 22s Filesystem
data-nginx-3 Bound pvc-b54a61e1-1c0f-42b1-9951-410ebd326a4d 1Gi RWO csi-disk-topology 9s Filesystem
# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-0 1/1 Running 0 65s 172.16.1.8 192.168.0.240 <none> <none>
nginx-1 1/1 Running 0 49s 172.16.0.13 192.168.0.121 <none> <none>
nginx-2 1/1 Running 0 32s 172.16.0.137 192.168.0.211 <none> <none>
nginx-3 1/1 Running 0 19s 172.16.1.9 192.168.0.240 <none> <none>
